These layers of the earth worksheets give students a structured entry point into a topic that cannot be observed directly — no field trip, no specimen under a microscope, no physical sample from below the crust. The set fits 5th and 6th grade earth science units, where students build understanding entirely from models, diagrams, and data rather than firsthand evidence. Each worksheet targets one representational or analytical skill, keeping the cognitive load focused and the feedback loop short.
What Each Worksheet Builds

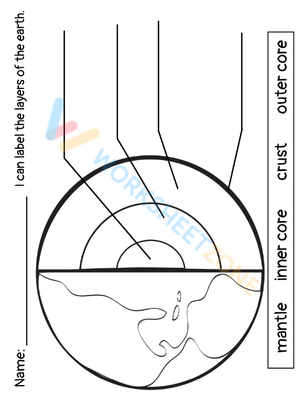

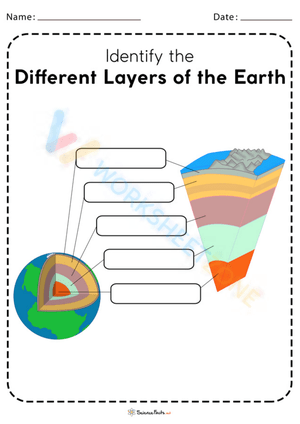

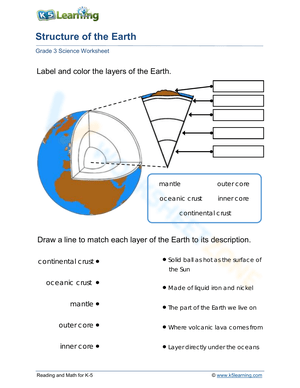

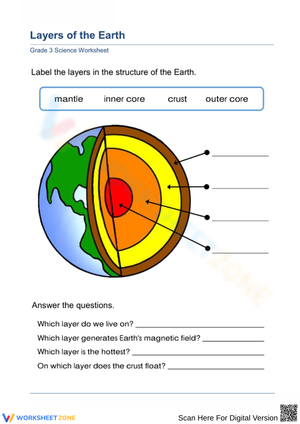

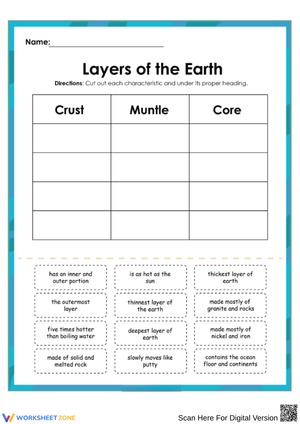

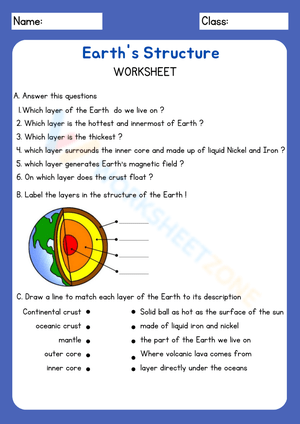

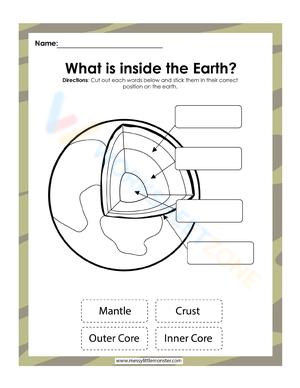

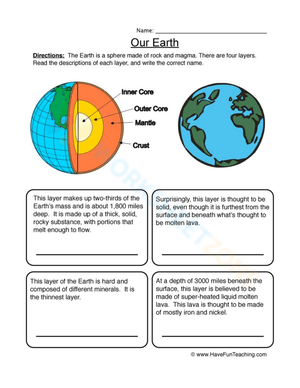

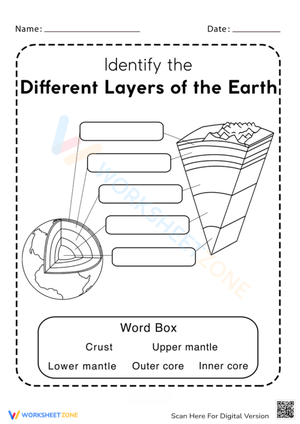

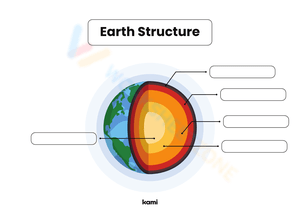

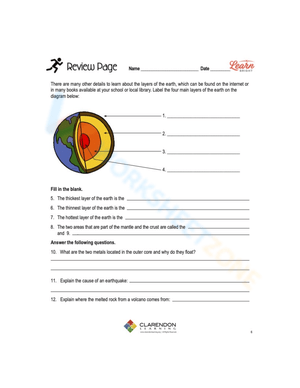

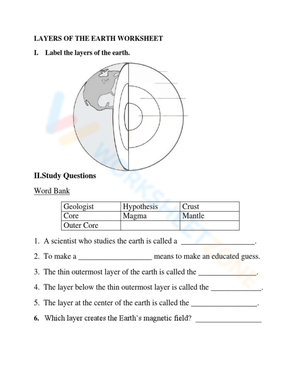

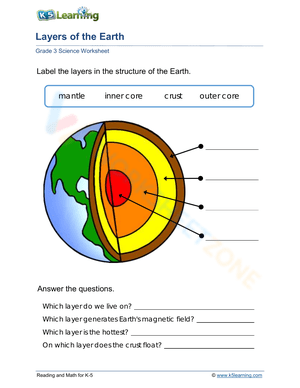

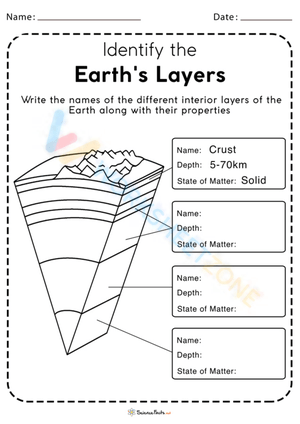

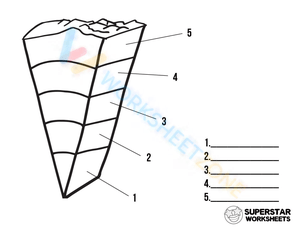

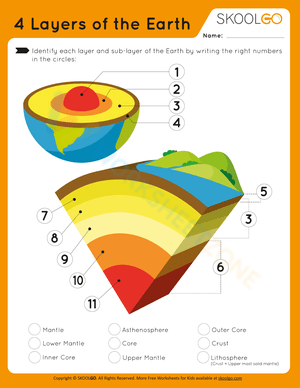

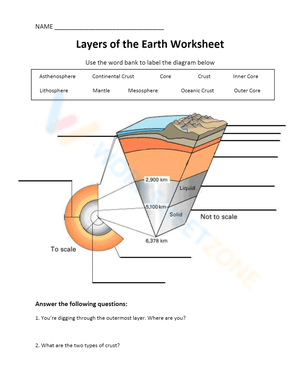

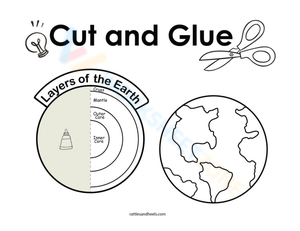

The layers of the earth worksheets divide the content into task types that each require a different kind of thinking. Diagram labeling puts students in front of a cross-sectional illustration and asks them to identify and position the crust, mantle, outer core, and inner core — some versions include a word bank, others do not, which is a meaningful distinction when the goal is genuine retrieval rather than matching. Comparison charts isolate the oceanic and continental crust side by side, targeting the density-thickness relationship students reliably reverse. Vocabulary fill-in-the-blank sheets build the precise language of composition and state of matter that students need before they can produce accurate written explanations. Cut-and-sort tasks ask students to pair layer names with properties, temperature ranges, and depth data before committing anything to paper, which surfaces reasoning errors that writing tasks often mask. Short-answer inference questions push students to explain how seismic wave behavior lets scientists describe a layer no drill has ever reached.
Errors Worth Watching Before You Hand These Out
The most persistent problem in student work on this topic is a scale error: students draw four roughly equal bands to represent the layers. The mantle alone accounts for approximately 84 percent of Earth's volume, so a diagram showing equal slices misrepresents the planet's structure before a single label is added. A brief class discussion about relative thickness — even just holding up a hard-boiled egg and noting how thin the shell is compared to the white beneath it — before distributing any labeling worksheet prevents a lot of correction later.
A harder error to fix is the state-of-matter reversal for the inner core. Students routinely write that it is liquid because the logic feels right: deepest equals hottest, and hot iron melts. What overrides that reasoning is pressure, not temperature, and pressure is an abstract force that has no everyday equivalent for most students. Marking the answer wrong without addressing the underlying logic just produces the same error on the assessment. The short-answer worksheets ask students to explain the role of pressure explicitly, giving teachers a written record of whether that concept actually landed rather than just whether a label was copied correctly.

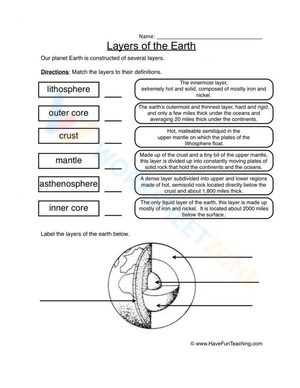

A third pattern worth anticipating: students who correctly say "semi-solid" during class will write "solid rock" on worksheets because that phrase appears in most textbook summaries. The fill-in-the-blank sheets include the term plastic alongside semi-solid to push students toward more geologically accurate language before the unit closes.
Building These Worksheets Into Your Earth Science Unit
The labeling worksheet without a word bank works as a pre-assessment at unit launch. Distributing it before direct instruction — after a brief open discussion about what students think is inside the planet — shows exactly where misconceptions are concentrated and which vocabulary terms are already familiar. The cut-and-sort activity fits mid-unit, after direct instruction but before students are expected to write independent explanations. Running it as a partner station during the last 20 minutes of a period, when sustained attention tends to drop, keeps the work active without demanding high-stakes individual performance at a moment when most students can't sustain it.
The apple remains one of the most effective physical references for communicating scale before students annotate a diagram. The skin represents the crust — paper-thin relative to everything beneath. The flesh is the mantle, dominant in proportion. The core, seeds included, represents both the outer and inner core together. Students who anchor the abstract cross-section to that physical object tend to draw the layers in correct proportion on assessments without prompting. The layers of the earth worksheets are formatted to pair with these kinds of brief physical demonstrations rather than replace them.
Standard Alignment
This set aligns to NGSS MS-ESS2-1, which asks students to develop a model describing the cycling of Earth's materials and the flow of energy that drives that process. In classroom terms, the standard expects students to understand not just the names of the layers but how mantle convection moves tectonic plates at the surface — a connection the comparison charts and short-answer worksheets make explicit. The diagram and labeling tasks build the foundational model knowledge the standard assumes; the inference questions push toward the explanatory thinking the standard actually assesses. Teachers working within the Next Generation Science Standards framework in grades 5 through 8 will find this set fits the ESS2.A disciplinary core idea sequence without modification.
Tiering the Set for Different Ability Levels
For students who need more support, the word-bank versions of the labeling worksheets supply the vocabulary without removing the analytical work of placing terms accurately on the diagram. Providing a completed reference illustration alongside the comparison chart — rather than pre-filling the chart itself — keeps the cognitive demand intact while reducing the retrieval burden on students still solidifying basic vocabulary. These layers of the earth worksheets work in any combination, so a teacher can assign word-bank versions to students who need them and no-bank versions to students who do not, without the two groups working from visually different resources.
Students ready to move further find the short-answer inference questions a natural launching point. Asking them to identify a second line of evidence scientists use to study Earth's interior — beyond seismic wave data — or to connect the magnetic field generated by the liquid outer core to a specific application like compass navigation or satellite shielding requires no additional materials. Both extensions work as written prompts added directly to the existing worksheet.
Frequently Asked Questions
What grade level are these worksheets built for?
The set targets grades 5 and 6, where the internal structure of Earth is a standard unit topic. Vocabulary complexity and task demands are calibrated for upper elementary and early middle school students. The no-word-bank labeling worksheets and the short-answer inference tasks also work well in 7th grade review contexts.
Do students need prior instruction before using these worksheets?
The word-bank labeling worksheet can precede direct instruction — it functions as a pre-assessment or unit hook. The comparison charts, fill-in-the-blank sheets, and short-answer inference tasks all assume students have already encountered the four layers through at least one lesson. The cut-and-sort works most reliably after direct instruction has covered layer properties and states of matter.
How do the worksheets address the outer core versus inner core distinction?
Several worksheets target this point directly because it generates the most confusion. The comparison charts include state of matter as a required row, asking students to mark the outer core as liquid and the inner core as solid. The short-answer section includes a prompt asking students to explain why the inner core stays solid at temperatures that would melt iron at the surface — which requires applying the concept of pressure rather than simply recalling a label.
Are answer keys included?
Yes. Each worksheet includes a corresponding answer key. The short-answer worksheets include model responses identifying the elements a complete answer should contain, which supports consistent scoring when multiple teachers or a substitute handles grading.
