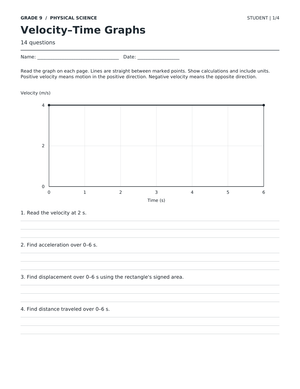

If your students already graph lines and calculate slope, velocity-time graphs give that skill a purpose. A velocity-time graph plots how fast an object moves against time, and every question you can ask about it — Is it speeding up? By how much? How far did it travel? — maps onto slope, rate of change, and the linear equations your Algebra I class works on all year. These velocity time graph worksheets let teachers pull motion problems into a math block without turning the lesson into a full physics unit, so grades 6-12 can practice reading graphs that describe something real.
Reading slope as acceleration
The core move on a velocity-time graph is treating the slope as acceleration. A horizontal line means velocity never changes, so acceleration is zero and the object holds a constant speed. An upward-sloping line shows positive acceleration — the object is speeding up — while a downward slope shows negative acceleration, or deceleration. The steeper the line, the greater the rate of change, exactly the way steepness works on any line in your slope lessons.
Start students with sorting tasks: hand them four graphs and ask which shows constant velocity, which speeds up, and which slows down, before a single number appears. That reading-first sequence keeps the focus on interpretation and stops students from grabbing at a formula they don't yet understand.
Here is the connection most worksheets skip: the slope-intercept form students memorize as y = mx + b shares its structure with a velocity equation, where the slope m acts as acceleration and the y-intercept b as the starting velocity. When a student computes rise over run on a velocity-time graph and lands on 5 m/s², they are doing the identical arithmetic they use to find slope from two points on a coordinate plane — only the units carry extra meaning. Naming that overlap out loud turns an abstract algebra skill into something students can watch move.
Finding displacement from the area under the curve
Slope answers how quickly velocity changes, but the area under the line answers how far the object actually traveled. For a horizontal line, that area is a rectangle: multiply velocity by time. For a sloped line, students split the region into rectangles and triangles and add the pieces. This is where a motion graph quietly teaches geometry and unit reasoning right alongside algebra.
The Physics Classroom explains that the area between the line and the time axis on a velocity-time graph equals displacement, so an object holding 10 m/s for 6 seconds covers 60 meters — a rectangle 6 units wide and 10 units tall, no motion formula required.
Framing displacement as area gives students a second, visual way to check answers they also reach by calculation. When the numbers from the area method and the arithmetic method agree, students gain confidence that the graph and the equation are telling the same story.
Velocity-time graphs vs. distance-time graphs
Students mix these two up constantly, and it helps to teach them side by side. On a distance-time graph, the slope is velocity. On a velocity-time graph, the slope is acceleration and the area is distance. A flat line means very different things on each: on a distance-time graph it means the object is parked, while on a velocity-time graph it means the object is cruising at a steady speed.
Pairing the two graph types on one worksheet forces students to check the axes before they interpret anything, which is a habit that pays off well beyond this unit. Ask them to translate: if a distance-time graph is a straight climbing line, what would the matching velocity-time graph look like? The answer — a flat, non-zero line — reveals whether they truly understand what each axis is measuring.
Classroom Implementation
These worksheets slot into a math or physical science block with almost no prep. A few ways teachers put them to work:
- Bell ringer: Project one graph and ask a single question — "Where is the object speeding up?" — to warm up graph-reading in under five minutes.
- Exit ticket: Give students one graph and ask them to report both the acceleration and the displacement for one interval. It's a fast read on who has connected slope and area.
- Stations: Post the four difficulty levels around the room and let students move up as they master each one.
- Intervention: Use Level 1 and Level 2 pages with a small group while the rest of the class tackles mixed-motion problems.
Because the answers are numeric and graph-based, they're quick to check at a glance, which keeps a formative-assessment loop tight enough to adjust the next day's plan. Keep a blank grid on hand so students who finish can sketch a motion story of their own and trade it with a partner to interpret.
Frequently Asked Questions
1. How do you read acceleration from a velocity-time graph?
Acceleration is the slope of the line. Pick two points, divide the change in velocity by the change in time, and you have the rate of change — the same rise-over-run calculation from your slope lessons. A steeper line means larger acceleration; a flat line means zero.
2. What does the area under a velocity-time graph represent?
The area between the line and the time axis represents displacement, or how far the object traveled. Students find it by breaking the region into rectangles and triangles and adding the areas together.
3. What grade level typically introduces velocity-time graphs?
They usually appear from grade 6 through high school, most often once students are comfortable with slope and rate of change in Algebra I, which makes them a natural bridge between math and physical science.
4. How are velocity-time graphs different from distance-time graphs?
On a distance-time graph, slope equals velocity. On a velocity-time graph, slope equals acceleration and area equals distance. A flat line means "parked" on the first and "steady speed" on the second.
5. How can these worksheets support both math and science instruction?
They reinforce slope, rate of change, and linear equations for math while building the motion-analysis skills students need in physical science, so one set of practice pages serves two courses.
