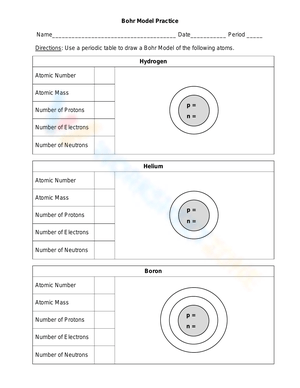

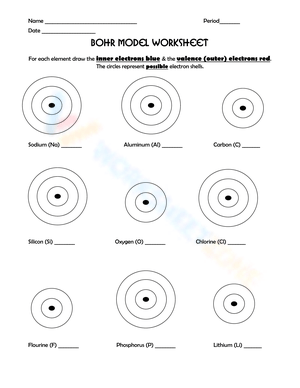

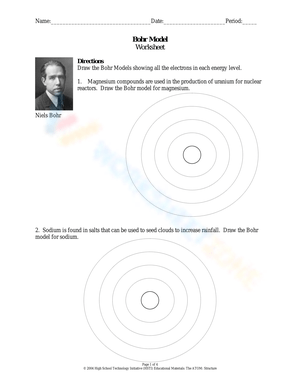

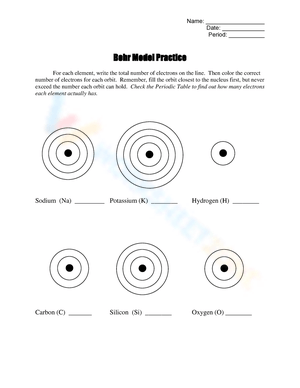

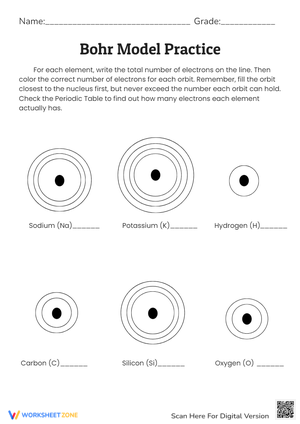

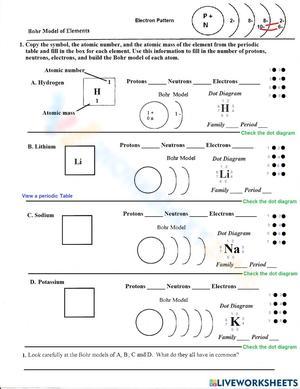

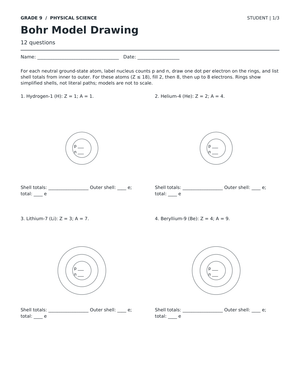

These 9th grade bohr model printable worksheets give chemistry teachers a structured practice set covering elements 1 through 20 — the range where the 2-8-8 shell pattern holds cleanly and students build real drawing fluency before running into the exceptions that appear later in the course. Each worksheet pairs subatomic particle calculation with the drawing task, so students arrive at the blank atom template already knowing how many protons, neutrons, and electrons they are working with. That pre-calculation step eliminates one of the most common sources of drawing errors before the pencil even touches the diagram.
Skills These Worksheets Build
The three skills these worksheets target — subatomic particle identification, electron shell placement, and valence electron recognition — are not independent. Students who miscalculate neutron count also tend to misplace electrons, and students who can't identify valence electrons struggle with the bonding unit that follows. The worksheets treat these as a connected sequence rather than separate tasks.
- Subatomic particle calculation: Students identify atomic number and atomic mass from the periodic table, then calculate proton count, electron count, and neutron count by subtraction. A dedicated calculation box on each worksheet catches arithmetic errors before they become drawing errors.
- Electron shell placement using the 2-8-8 rule: Students fill the first shell before moving to the second, and the second before the third. The worksheets include enough repetition across elements that the sequence becomes automatic rather than something students have to consciously recall during an assessment.
- Valence electron identification: After completing the drawing, students record the number of electrons in the outermost shell and connect that count to the element's group number. This step bridges the visual diagram to the periodic table logic students will use for the rest of the unit.
The set stops at calcium deliberately. Elements 1 through 20 represent the range where the 2-8-8 pattern works without orbital exceptions, so 9th grade bohr model printable worksheets built around this range give students a reliable rule to practice — rather than a rule with footnotes they are not yet equipped to understand.
Three Drawing Mistakes That Consistently Show Up in Student Work
The most persistent error in this unit is neutron miscalculation, and it follows a predictable pattern. Students round the atomic mass incorrectly — or skip rounding entirely. Chlorine has an atomic mass of 35.45, which rounds to 35, giving 18 neutrons. Students who treat 35.45 as exact often record 17.45, truncate to 17, and end up off by one — then draw a diagram with a correctly identified element and a wrong nucleus. The pre-calculation box on each worksheet makes this error visible before the drawing starts, which is the right moment to catch it.
The second error appears at the first shell. Students who correctly place 2 electrons in helium still default to placing 3 electrons in the first shell of lithium — as if the shell capacity resets with each new element. It does not reset. It takes three or four elements of practice before most students internalize that the first shell caps at 2 regardless of total electron count. One useful correction during whole-class work: have students circle the first shell once it fills and write "closed" next to it before drawing the second shell.
A third error, less obvious but worth naming: students place electrons sequentially around each shell — 12 o'clock, then 1 o'clock — rather than distributing them evenly before pairing. By sulfur, with 6 electrons in the third shell, the diagram is technically correct but hard to read at a glance. Teaching a consistent notation — place electrons at the four compass points first, then pair starting from the left — keeps diagrams legible and makes grading significantly faster.
Fitting These Worksheets Into Your Atomic Structure Unit
The most effective sequence starts with a class-wide demonstration before distributing any worksheet at all. Draw sodium on the board, narrating every decision aloud: look up the element, record the atomic number and mass, calculate particles, label the nucleus, place electrons shell by shell. Students who watch this modeled once make fewer procedural errors than students handed a worksheet cold. The modeling matters less about showing steps and more about making the thinking visible.
After the demonstration, distribute a version of the worksheet with the nucleus information already filled in. Students place only the electrons. This version works well as a Tuesday starter or a 10-minute check after introducing the shell rules — the limited scope keeps it from feeling like a full assignment while students are still uncertain about the procedure. Once students place electrons accurately on three or four pre-filled diagrams, move to a version where they calculate subatomic particles themselves and then draw.
The blank-template version — no pre-filled nucleus, just a periodic table and an empty diagram — belongs at the end of week two as a quiz or unit checkpoint, not as a first or second exposure. Students who have worked through the earlier versions arrive at the blank template with the calculation habit already in place, which makes the assessment a demonstration of fluency rather than a first attempt at the full task.
Standard Alignment
These worksheets align with NGSS HS-PS1-1, which asks students to use the periodic table as a model to predict the relative properties of elements based on the patterns of electrons in the outermost energy levels. In a 9th grade chemistry sequence, this standard typically falls in the first six weeks — early enough to serve as the structural foundation for ionic bonding, covalent bonding, and periodic trend analysis. Drawing Bohr models for elements across multiple groups gives students repeated exposure to the valence electron pattern that underlies the entire table, so HS-PS1-1 functions as a working framework rather than an isolated standard to address and move past.
Adjusting the Set for a Range of Learners
For students who need more support, the most effective adjustment is removing the calculation step rather than simplifying the drawing itself. A version of each worksheet that provides proton, neutron, and electron counts — leaving only the diagram to complete — lets struggling students practice the visual task without the arithmetic barrier. Adding a shell capacity reference box directly on the worksheet (first shell: 2 maximum; second shell: 8 maximum; third shell: 8 maximum for elements 1 through 20) removes the need to recall rules while still requiring students to apply them.

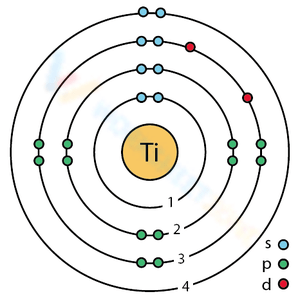

For students who move through the set quickly, the natural extension is working past element 20 — but with a purpose. Assigning iron or copper and asking students to write one sentence explaining where their 2-8-8 expectation breaks down surfaces the model's limitation in a productive way. Another useful extension: have students identify two elements in the same group, draw both, and articulate in writing why their valence electron counts match. That synthesis — connecting the drawn diagram back to the table's structure — moves a student from procedural toward conceptual understanding.
Students who find the small concentric-circle format difficult — particularly when drawing four shells for calcium — benefit from a larger-format diagram template. The 9th grade bohr model printable worksheets in this set include an expanded diagram option for that reason, keeping the focus on electron placement rather than the mechanics of fitting four tight circles onto a standard-sized drawing box.
Frequently Asked Questions
Why does the set focus on elements 1 through 20 instead of covering more of the periodic table?
Calcium, element 20, marks the natural stopping point for the 2-8-8 pattern. Elements beyond calcium introduce a third shell that can hold up to 18 electrons and a fourth shell that begins filling before the third is complete — patterns that require orbital theory to explain accurately. Limiting practice to elements 1 through 20 keeps the rule consistent across every element in the set and lets students build genuine fluency before encountering the exceptions in later coursework.
When in the unit should teachers introduce these worksheets?
After at least one modeled demonstration, but before any independent assessment. Students need to have seen the full calculation-to-drawing sequence at least once before they attempt it alone. Pre-filled versions work well on day two or three of the atomic structure unit; blank-template versions work better as a checkpoint at the end of week two. Dropping 9th grade bohr model printable worksheets into the lesson plan on day one — before students have any mental model of electron shells — tends to produce diagram copying rather than actual understanding of what the shells represent.
How do these worksheets pair with the PhET Build an Atom simulation?
In sequence, with the simulation first. PhET's Build an Atom lets students add particles interactively and watch the element's identity and stability change in real time — it handles the conceptual reasoning that a static diagram cannot animate. Using the simulation first and then moving to a worksheet for the same elements gives students a bridge from exploratory interaction to the kind of fixed representation they encounter on assessments. The worksheet becomes a record of what the simulation showed them rather than an abstract exercise in circle-drawing.
