Relative Dating Printable Worksheets for 9th Grade

These relative dating printable worksheets for 9th grade give Earth Science teachers diagram-based sequencing exercises built around five core stratigraphic principles — not as vocabulary to memorize, but as tools students apply to unfamiliar cross-sections. Each worksheet centers on a different geological scenario: undisturbed sedimentary sequences, faulted rock bodies, igneous intrusions, and erosional gaps. Students determine which events happened first and last, then cite evidence from the diagram to support their reasoning.

The Geological Principles Each Worksheet Targets

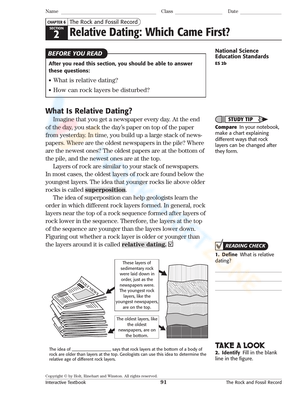

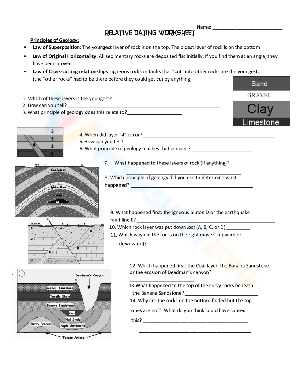

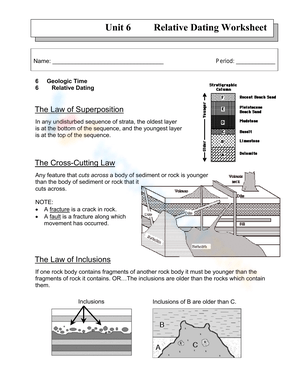

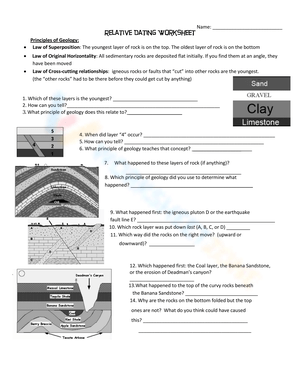

The set builds competence with the laws that underpin every stratigraphic analysis. The Law of Superposition is the entry point: in an undisturbed sequence, older layers sit beneath younger ones. From there, exercises introduce the Principle of Original Horizontality — if beds are tilted or folded, a tectonic event occurred after the original deposition. The Principle of Cross-cutting Relationships adds another analytical layer: any fault, dike, or batholith cutting through existing rock is younger than what it cuts. Students also work with the Principle of Inclusions, identifying that rock fragments embedded in a surrounding layer are older than that host rock. Toward the end of the set, index fossil correlation asks students to match time-equivalent layers across two or three separate outcrops by tracking which fossil species appear where.

That last task — correlating across separate outcrops — is where the skill stops feeling like diagram reading and starts resembling actual geological practice. Students must reason that two limestone exposures in different columns formed during the same time interval because they share the same trilobite species, not because the layers look alike. Isolated cross-section exercises do not build this kind of reasoning on their own.

Where Students Consistently Lose the Thread

The most predictable error is a reversal of cross-cutting logic. Students understand that a fault or dike cuts through rock, but many intuitively feel that the surrounding rock must be younger — as though the older material needed to exist first to "receive" the intrusion. This inverts the principle entirely. A student will circle an igneous dike and label it older than the sedimentary beds it penetrates, arriving at the right structure but the wrong conclusion. This error appears on nearly every first attempt and requires direct instruction to correct, not simply more practice.

Unconformities create a different confusion. Students can find the wavy line in a diagram and write "erosion" next to it without grasping what the gap represents: layers that were deposited and then removed, leaving a period of time unrepresented in the rock record. They treat the unconformity as just another event in the sequence rather than as an absence. A useful diagnostic: ask students to sketch what the diagram might have looked like before the erosion occurred. Students who cannot do this have not understood what is missing.

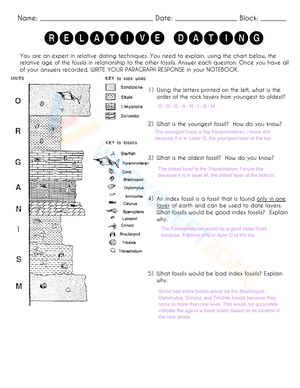

Fossil correlation work reveals a third error. Students tend to match outcrop columns visually — choosing columns that look similar in thickness or shading — rather than tracing specific index fossil species across the diagram. Relative dating printable worksheets for 9th grade that include multi-column correlation tasks expose this habit directly, because the columns are drawn with enough visual variation that appearance-matching fails and students must use the fossil key to make their case.

Where These Worksheets Fit in the Instructional Sequence

These exercises belong in the middle of a relative dating unit, not at its start. Before students work with any 2D diagram, spend a class period with physical models — different-colored clay stacked in layers, then cut through with a pencil to simulate a fault or dike. Students who have physically manipulated that structure carry a mental image into the diagram work that reduces cross-cutting reversal errors significantly. The transition from three dimensions to two is smoother when the spatial relationship has been handled first.

Once diagram work begins, the most effective instructional move is to require a geological narrative rather than just an ordered list. Instead of writing "A, then B, then C," students write: "A shallow sea deposited alternating beds of limestone and shale. Tectonic forces tilted both layers before magma intruded as a vertical dike through the center of the sequence." This forces students to name the process behind each event, which reveals whether they understand what produced the sequence or are only ranking letters by position. Teachers who require this step regularly see noticeably cleaner performance when the same principles appear on a formal assessment.

The full set of relative dating printable worksheets for 9th grade covers a difficulty range suited to a two-to-three-week unit progression, with straightforward layered sequences early and multi-principle problems — combining faults, intrusions, unconformities, and fossil data — toward the end. A single diagram at the start of class takes most students about eight minutes to sequence, which makes these worksheets practical for formative checks without consuming significant instructional time.

Standard Alignment

These worksheets address NGSS HS-ESS1-5, which requires students to evaluate evidence for the ages of crustal rocks. In instructional terms, that means students must move from recognizing the names of stratigraphic laws to applying them as analytical tools on diagrams they have not seen before. The exercises also support Science and Engineering Practice 4 (Analyzing and Interpreting Data) and Practice 6 (Constructing Explanations), since students build reasoned arguments about event sequences rather than recalling textbook definitions.

Most state Earth Science progressions place relative dating at the 9th-grade level because it establishes the observational reasoning that makes absolute dating data interpretable later. A student who understands why a cross-cutting dike is younger than the surrounding rock is better positioned to understand why that dike's isotopic ratios reflect a more recent crystallization event — the underlying logic carries across both methods.

Calibrating These Worksheets for Different Student Levels

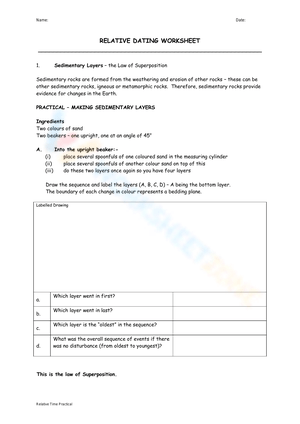

For students working below grade level, limit the initial work to cross-sections showing three or four undisturbed horizontal layers with no faults or intrusions. Applying the Law of Superposition correctly is a genuine task for students still learning to read a geological diagram. Allow these students to annotate directly on the worksheet — circling the oldest layer, drawing arrows to show age direction — before requiring a written explanation.

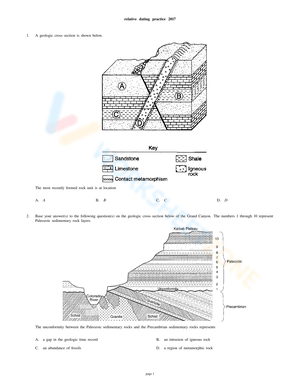

At grade level, standard cross-sections combining a fault, an intrusion, and one unconformity represent the appropriate challenge. Students should work through these with increasing independence across the unit; a step-by-step checklist is useful early but should be withdrawn as competence grows, not carried through to the end of the sequence.

Advanced students gain the most from relative dating printable worksheets for 9th grade that pair multi-column fossil correlation with a table of radiometric ages supplied alongside the diagram. These students can also take on angular unconformities, where the full sequence — deposition, tilting, erosion, renewed deposition — requires tracking three separate geological phases without conflating them into one.

Frequently Asked Questions

What is the difference between a fault and an igneous intrusion in a cross-section diagram?

A fault is a fracture along which two rock bodies have moved relative to each other; the fault plane cuts through existing layers and is therefore younger than those layers. An igneous intrusion — a dike or sill — is solidified magma that forced its way into existing rock while molten. Both are younger than the material they cut, but they represent entirely different geological processes. Students frequently conflate them in diagrams because both appear as lines intersecting the layered sequence.

Why does the Principle of Original Horizontality matter if the diagram already shows tilted layers?

The Law of Superposition only applies to undisturbed sequences. Tilted or folded layers indicate that tectonic forces acted on the rock after it was deposited — and in overturned sequences, the original vertical order may be inverted entirely. Students who apply superposition to tilted layers without first checking for evidence of deformation will often sequence the events in reverse. Identifying the original depositional orientation is a required step before any age ranking can begin.

How do index fossils function differently from other fossils in correlation work?

Index fossils represent organisms that lived during a specific, geographically widespread window of time — short duration, broad distribution. When the same index fossil appears in layers at two different locations, those layers are interpreted as contemporaneous regardless of their appearance or mineral content. This is what makes them useful for correlation: they pin a relative time interval to a rock unit without requiring any knowledge of the unit's absolute age in years.

Do students need to learn all five principles before starting the first worksheet?

No. The worksheets work better when introduced alongside the principles one at a time. A student who has only covered superposition and cross-cutting relationships can succeed on several exercises before Original Horizontality or Inclusions enters the picture. Presenting all five principles upfront before any practice tends to overload working memory — students end up scanning a list of rules rather than applying any of them with confidence. Introducing each principle just before it appears in the next diagram keeps the learning connected to actual use.
