Free Body Diagram Worksheet
0 Views
0 Downloads
Paste this activity's link or code into your existing LMS (Google Classroom, Canvas, Teams, Schoology, Moodle, etc.).
Students can open and work on the activity right away, with no student login required.
You'll still be able to track student progress and results from your teacher account.
Information
Description
What It Is:

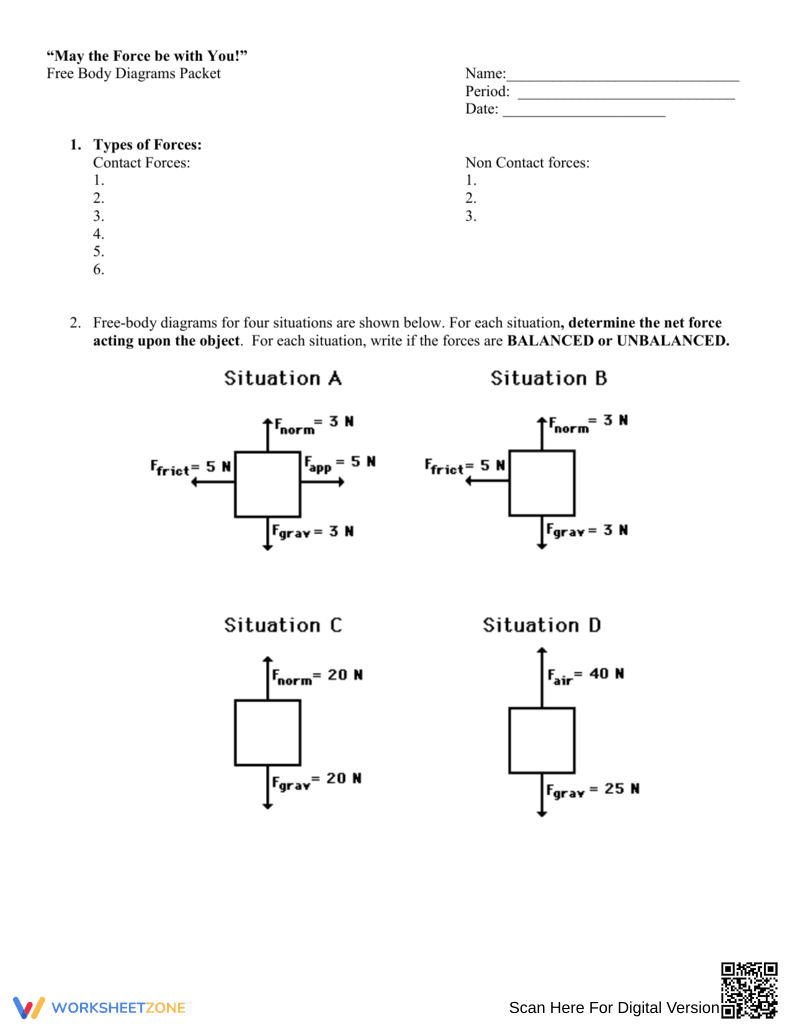

This is a physics worksheet focusing on free-body diagrams and types of forces. It includes a section for listing examples of contact and non-contact forces. The main activity involves analyzing four different situations depicted with free-body diagrams, each showing forces acting on an object. Students are asked to determine if the forces are balanced or unbalanced for each situation. Example forces shown include normal force, friction, applied force, gravity, and air resistance, each with a magnitude in Newtons.
Grade Level Suitability:
This worksheet is suitable for high school physics, specifically grades 9-12. The concepts of free-body diagrams, net force, and balanced/unbalanced forces are typically introduced at this level. The mathematical aspect of analyzing the force magnitudes also aligns with high school curriculum.
Why Use It:
This worksheet helps students understand and apply the concepts of forces, free-body diagrams, and net force. It reinforces the ability to visually represent forces and analyze their effect on an object's motion, which is a fundamental skill in physics. It allows students to distinguish between balanced and unbalanced forces.
How to Use It:
First, students should list examples of contact and non-contact forces. Then, for each of the four situations, students should analyze the free-body diagram to determine the net force acting on the object. Based on the net force, they should write whether the forces are balanced or unbalanced for each situation.
Target Users:
The target users are high school physics students learning about forces, free-body diagrams, and Newton's laws of motion. It is also beneficial for teachers looking for practice worksheets to reinforce these concepts.
