These energy sound and light worksheets for 9th grade give physical science teachers a set of standalone practice resources that span the full arc of a waves unit — from wave anatomy and vocabulary to the inverse frequency-wavelength relationship to the real-world applications of the electromagnetic spectrum. Each worksheet covers a distinct slice of the content, so teachers can sequence them against their unit calendar without needing to use all of them in order or at the same pace.
The Specific Skills Targeted
The set divides naturally into three content areas, each handled by distinct worksheet types rather than mixed together in a way that muddies the focus.
Vocabulary and classification worksheets ask students to match terms — amplitude, frequency, wavelength, pitch, rarefaction — to definitions and apply them to brief scenarios. These aren't simple fill-in-the-blank memorization drills. The scenarios require students to identify which property of a wave changes when a guitar string is plucked harder versus when the string is shortened, which forces them to treat the vocabulary as usable rather than decorative.

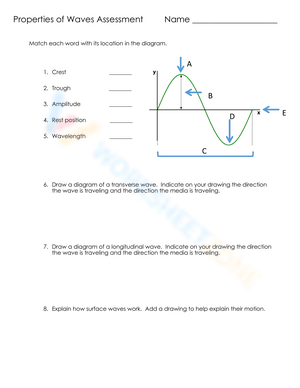

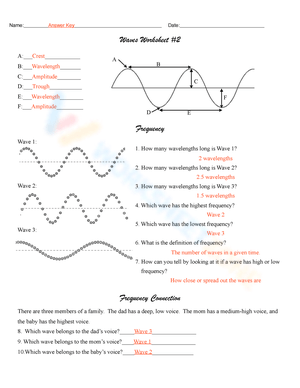

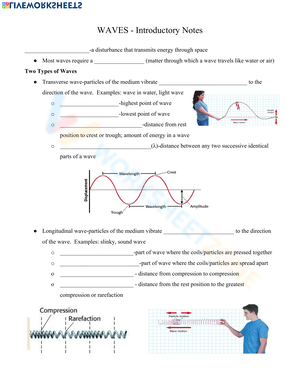

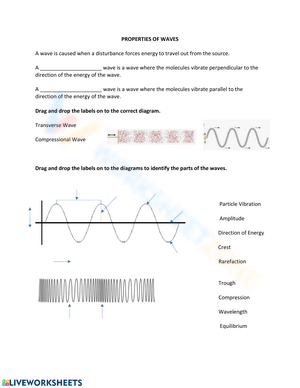

Diagram worksheets cover both wave types in depth. For transverse waves, students label crest, trough, wavelength, and amplitude. For longitudinal waves, they identify compression and rarefaction zones — a distinction students reliably mix up when the diagram is scaled differently than the one they first practiced on. A dedicated electromagnetic spectrum worksheet asks students to arrange wave types from radio through gamma by increasing frequency, annotate the visible light band, and match real-world technologies to their corresponding radiation type.

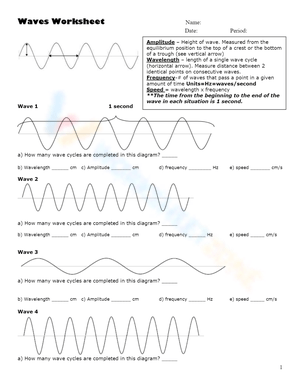

Calculation practice focuses on the wave speed equation (v = fλ). Each calculation worksheet presents problems in all three variable configurations — solving for velocity, frequency, and wavelength independently — so students must rearrange the equation rather than plug numbers into one memorized form. Short-answer questions close several worksheets, asking students to explain specific phenomena: why sound doesn't travel through outer space, or what property of a wave determines whether a given frequency of light falls within the visible spectrum.
Mistakes Students Make That These Worksheets Help You Catch
The most consistent error in a 9th grade waves unit isn't a vocabulary gap — it's a relational confusion. Students who can correctly state "higher frequency means shorter wavelength" will still write, in a word problem, that a wave with twice the frequency has twice the wavelength. They hold the inverse relationship as a memorized phrase rather than a usable mathematical constraint. The calculation worksheets expose this fast: if a student solves the isolated v = fλ problem correctly but then calculates a comparison problem backwards — concluding that 200 Hz produces a longer wavelength than 100 Hz at the same wave speed — that's the tell. Catching it during guided practice is the entire point of running these in class before the unit assessment.
A second error appears on longitudinal wave diagrams. Students label the compression regions correctly on the first diagram they see, then reverse compression and rarefaction on the second if the visual spacing looks slightly different. This happens because they're reading the visual pattern rather than applying the definition. The diagram worksheets include multiple longitudinal wave representations at different scales for exactly this reason.
Fitting These Worksheets Into the Week
Vocabulary and matching worksheets work best as a structured 10–12 minute opener rather than a five-minute warm-up. That time frame gives you a full circuit of the room to see what students are writing and correct errors before you move into direct instruction. Students who complete this work in class, with you present, catch mistakes they'd gloss over at home.
The electromagnetic spectrum worksheet runs best after a brief color-coding activity: have students shade the spectrum diagram with cool colors for low-frequency radio waves and warm colors for high-frequency gamma rays before they read a single label. That visual encoding — warm color, high energy — gives students an intuitive reference point when they encounter the equation problems. Energy sound and light worksheets for 9th grade that combine this kind of visual priming with quantitative follow-up consistently produce stronger results on frequency-wavelength calculations than leading with the equation cold. The activity takes less than five minutes and removes a conceptual step that otherwise slows students down mid-problem.
Calculation worksheets fit naturally into the independent work block of a 50-minute period. Pull a small group who struggled with the diagram work while the rest solve wave speed problems on their own. The short-answer sections double as exit tickets — a class set of 28 takes about four minutes to skim when you're reading for the key phrase that reveals whether a student understood the mechanism or just produced a plausible-looking answer.
Standard Alignment
NGSS HS-PS4-1 asks students to use mathematical representations to demonstrate that waves have characteristic properties — wavelength, frequency, amplitude — independent of wave type. The calculation and diagram worksheets in this set directly address that performance expectation. NGSS HS-PS4-5 connects wave behavior to information transfer technologies, and the short-answer and extension questions referencing fiber optics, radio communication, and solar energy give students practice at that level of application. In most district pacing guides, this content lands in the second semester of 9th grade physical science, following a mechanics unit. Students arrive with some equation-rearrangement experience already, so these worksheets build on that background rather than having to re-teach algebraic manipulation from scratch.
Adjusting the Worksheets for Mixed-Ability Classes
For students who hit a wall with wave speed algebra, the most effective support is a fully worked example placed at the top of the worksheet — not a formula box, but a problem solved step by step with each algebraic move labeled. Students who stumble on equation rearrangement are usually facing an algebra obstacle, not a physics comprehension problem. The worked example removes that obstacle and lets you see whether they actually understand the wave relationship.
Energy sound and light worksheets for 9th grade give advanced students a real challenge when you attach multi-step extension problems: compare the wavelength of a 101.1 MHz FM radio signal to a 2.4 GHz Wi-Fi signal using v = fλ, then identify which carries more energy per photon and explain why. That chain demands correct equation rearrangement, the inverse frequency-wavelength relationship, and the direct frequency-energy relationship — three separate ideas connected in one problem. It also surfaces quickly whether a student is reasoning through the physics or just pattern-matching from earlier problems.
For students reading below grade level, sentence frames reduce the language processing demand on short-answer questions without changing the science expectation. A frame like "Sound cannot travel through a vacuum because ___" requires the same physical understanding as an open-ended prompt but removes the additional cognitive load of constructing sentence structure from nothing. The science thinking stays intact; the writing barrier comes down.
Frequently Asked Questions
Do the worksheets cover sound and light in equal depth, or does one get more attention?
Both receive full coverage. Sound gets dedicated worksheets on longitudinal wave anatomy, medium density and wave speed, and pitch-amplitude distinctions. Light and the electromagnetic spectrum receive equal treatment, including reflection, refraction, and wave ordering across the full spectrum. Teachers can run them as a unified unit or separate the sound and light material across two distinct instructional weeks.
What if my students haven't had strong algebra instruction before this unit?
The calculation worksheets sequence v = fλ problems so students solve for wave speed first before rearranging for frequency or wavelength. A worked example at the top of each calculation worksheet walks through one complete problem with labeled algebraic steps before students attempt others independently. That sequence reduces the rearrangement difficulty enough that most students can access the physics without needing a separate algebra intervention first.
Are these worksheets tied to a specific textbook?
No. The vocabulary and conceptual framing align closely with The Physics Classroom and CK-12 Physical Science, so teachers using either as a course reference will find familiar terminology throughout. But the worksheets work alongside any physical science or introductory physics text that covers wave properties. Energy sound and light worksheets for 9th grade built around core NGSS vocabulary stay curriculum-agnostic in practice — the performance expectations, not the textbook, set the standard.
How long does a typical worksheet take to complete?
Diagram and labeling worksheets generally run 10–15 minutes for on-level 9th graders. Calculation worksheets with six to eight problems run 15–20 minutes. Each worksheet that combines short-answer questions with diagrams or calculations can fill a 30-minute independent work block, which makes them practical for review days, assessment prep periods, or class periods running with a substitute.
