These 3rd grade physics worksheets printable resources give teachers a focused toolkit for building student understanding of forces, motion, and magnetic interactions — the three pillars of the NGSS 3-PS2 unit. Each worksheet targets one concept rather than surveying everything at once, which matters when students are first learning to distinguish a push from a pull, let alone explain why a magnet repels without making contact. The set covers both the vocabulary and the visual reasoning students need before they can write a scientific explanation with any real accuracy.
The Specific Skills Targeted
Every worksheet in this set isolates a single physical science skill, which keeps cognitive load manageable when students are encountering these ideas for the first time. The skills break down like this:

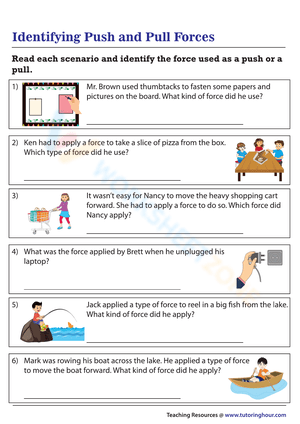

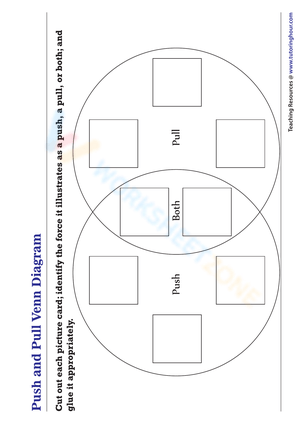

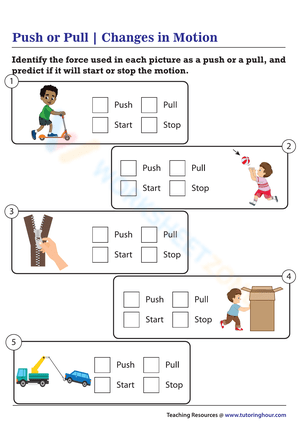

- Push and pull sorting — Students categorize real-world actions (opening a door, kicking a ball, pulling a wagon) as pushes or pulls, then identify what changed: speed, direction, or both.
- Force arrow diagramming — Students draw arrows on object diagrams to represent forces, marking both direction and relative size. This sets up the balanced-versus-unbalanced distinction that runs through the rest of the unit.
- Balanced and unbalanced forces — Each worksheet in this section asks students to examine a force diagram and determine whether an object will stay still, speed up, slow down, or change direction based on what the arrows show.
- Motion pattern prediction — Students observe data from a moving object — a rolling ball, a pendulum swing — and use a structured chart to predict its next position. This builds the observation-to-prediction sequence NGSS expects at this grade.
- Magnetic polarity and non-contact forces — Students predict attract-or-repel outcomes based on pole orientation, then record actual results. A separate worksheet introduces the idea that magnetic and electric forces act across a gap — no touching required.

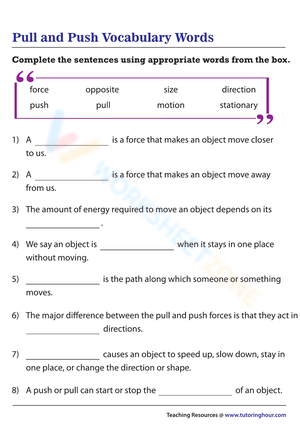

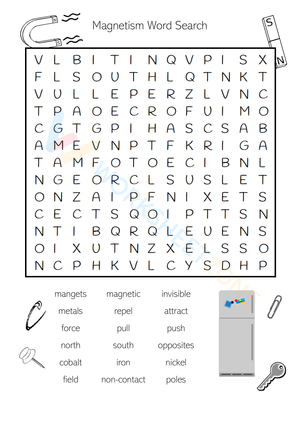

- Vocabulary reinforcement — Crossword, matching, and fill-in formats build fluency with terms like friction, gravity, poles, and magnetic field.
Frequent Student Errors Worth Watching For
Force arrow diagrams are where most students stumble first. Even after a class demonstration, a significant number of students draw both arrows the same length regardless of whether the forces are balanced or unbalanced. They understand conceptually that one force is bigger, but the translation to arrow length doesn't click without explicit practice. One useful move: have students assign a number to each force before drawing anything — 1 for small, 3 for large — so the relative size is decided before the pencil hits the paper.
The second persistent error is conflating "balanced forces" with "the object is not moving." Students who correctly identify a stationary book as experiencing balanced forces will then mark a ball rolling at constant speed across a smooth floor as having unbalanced forces — because it's moving, so something must be pushing it harder. This misconception shows up consistently in student work and takes more than one lesson to correct. The motion prediction worksheets address it directly by including constant-speed scenarios alongside acceleration scenarios, forcing students to reason through the distinction rather than rely on intuition.
With magnetism, the surprise is that many third graders have handled magnets before, but almost always in the attracting orientation — stacking them the easy way. When first asked to predict pole-to-pole repulsion, a large proportion guess "attract" out of habit. The worksheets ask students to record predictions before testing, which makes this error visible and worth discussing rather than just silently wrong on the page.
Building These Worksheets Into Your Lesson Sequence
These resources work best when they follow a physical demonstration rather than precede one. The tug-of-war setup is a reliable starting point: two students pulling with equal strength gives the class a felt understanding of balanced forces before anyone diagrams anything. The force arrow worksheet lands differently after that experience — students are labeling something they've already felt in their shoulders, not abstracting from text. The 3rd grade physics worksheets printable format is particularly useful at this moment because it gives students an immediate recording structure while the physical experience is still fresh, rather than asking them to sit with the concept unanchored overnight.
For the magnetism worksheets, a two-day structure tends to work well. Run the prediction column as a quick warm-up on day one, then do the hands-on testing the following day, then return to the same worksheet to fill in the results column and compare. This creates a visible before-and-after record on a single worksheet and turns what could be an unstructured magnet-play session into a real prediction-and-evidence cycle.
The vocabulary worksheets fit naturally into the Monday warm-up slot at the start of each new sub-topic — five to eight minutes before the main lesson — rather than saved for end-of-unit review. Introducing the language early gives students something to listen for during the demonstration and discussion that follows, and it reduces the cognitive burden of learning a concept and its name at the same time.
Standard Alignment
These worksheets align to NGSS 3-PS2: Motion and Stability — Forces and Interactions. Performance expectations 3-PS2-1 and 3-PS2-2 ask students to plan and conduct investigations into the effects of balanced and unbalanced forces on motion and to observe patterns to make predictions. Performance expectations 3-PS2-3 and 3-PS2-4 address electric and magnetic interactions, specifically the idea that some forces act without direct contact. Each worksheet maps to at least one of these performance expectations. Several also address the Science and Engineering Practice of planning and carrying out investigations — through structured data tables and hypothesis-recording formats — alongside the Crosscutting Concept of patterns, which runs through all four 3-PS2 expectations.
Adjusting the Worksheets for a Range of Learners
For students who need additional support, the force arrow diagrams can be modified by providing a numbered force scale (1 = small, 2 = medium, 3 = large) rather than leaving arrow sizing entirely open-ended. This breaks the task into two steps — choose a number, then draw the matching arrow — instead of one open-ended visual judgment. Students who freeze in front of a blank diagram often make quick progress once that decision is made explicit and bounded.
Students who work through the core worksheets quickly benefit from an added column in the motion prediction charts: "What would change if friction increased?" or "What would happen if a second force were added in the opposite direction?" This keeps them reasoning within the same concept rather than jumping ahead, and it generates interesting answers to bring back to a whole-class discussion. The 3rd grade physics worksheets printable set includes enough format variety — diagrams, charts, sorting tasks, written explanations — that a mixed-ability class can work on the same concept through different entry points simultaneously without the tasks feeling obviously tiered.
For English language learners, the visual nature of force diagrams is a genuine asset. Arrows carry meaning that doesn't depend on reading fluency, and the vocabulary matching worksheets pair terms with labeled diagrams rather than written definitions — which makes them a more accessible starting point than a crossword for students still building English language skills.
Frequently Asked Questions
What NGSS standards do these worksheets address?
The set addresses NGSS 3-PS2, covering all four performance expectations: 3-PS2-1 and 3-PS2-2 focus on the effects of balanced and unbalanced forces and patterns of motion; 3-PS2-3 and 3-PS2-4 cover non-contact forces, specifically magnetic and electric interactions. The worksheets also engage the Science and Engineering Practice of planning and carrying out investigations and the Crosscutting Concept of patterns, both of which appear in the 3-PS2 performance tasks.
Can these worksheets be used as formative assessment tools?
Several of them work well as formative checks — particularly the force arrow diagrams and motion prediction charts, which ask students to apply reasoning rather than recall a definition. A completed diagram tells you whether a student can represent force direction and magnitude accurately, which is a different and more revealing data point than a multiple-choice answer. Used this way, they show you where to spend instructional time before the end-of-unit assessment rather than after it.
How long does each worksheet typically take?
Most worksheets in the set take between 10 and 20 minutes for a third grader working independently at an average pace. Force diagram worksheets tend to run shorter — 8 to 12 minutes — because the task is visual and clearly bounded. Motion prediction charts, which include a data-recording component, often run closer to 15 to 20 minutes, especially when students complete the observation step during the same class period. Factor in an extra 5 minutes if you plan to review answers as a group immediately after, which is worth doing — force-direction errors calcify quickly if left unaddressed.
Do these worksheets require any special materials or classroom setup?
Most of the 3rd grade physics worksheets printable resources require only pencils and the printed page. The magnetism prediction worksheets work best when paired with actual bar magnets so students can test their predictions directly, but the prediction and recording portions of each worksheet can be completed independently as a reasoning exercise even without the physical materials on hand. The motion prediction charts reference common classroom objects — a rolling ball, a toy car on a ramp — that most teachers already have access to without ordering anything new.
