Description
What It Is:

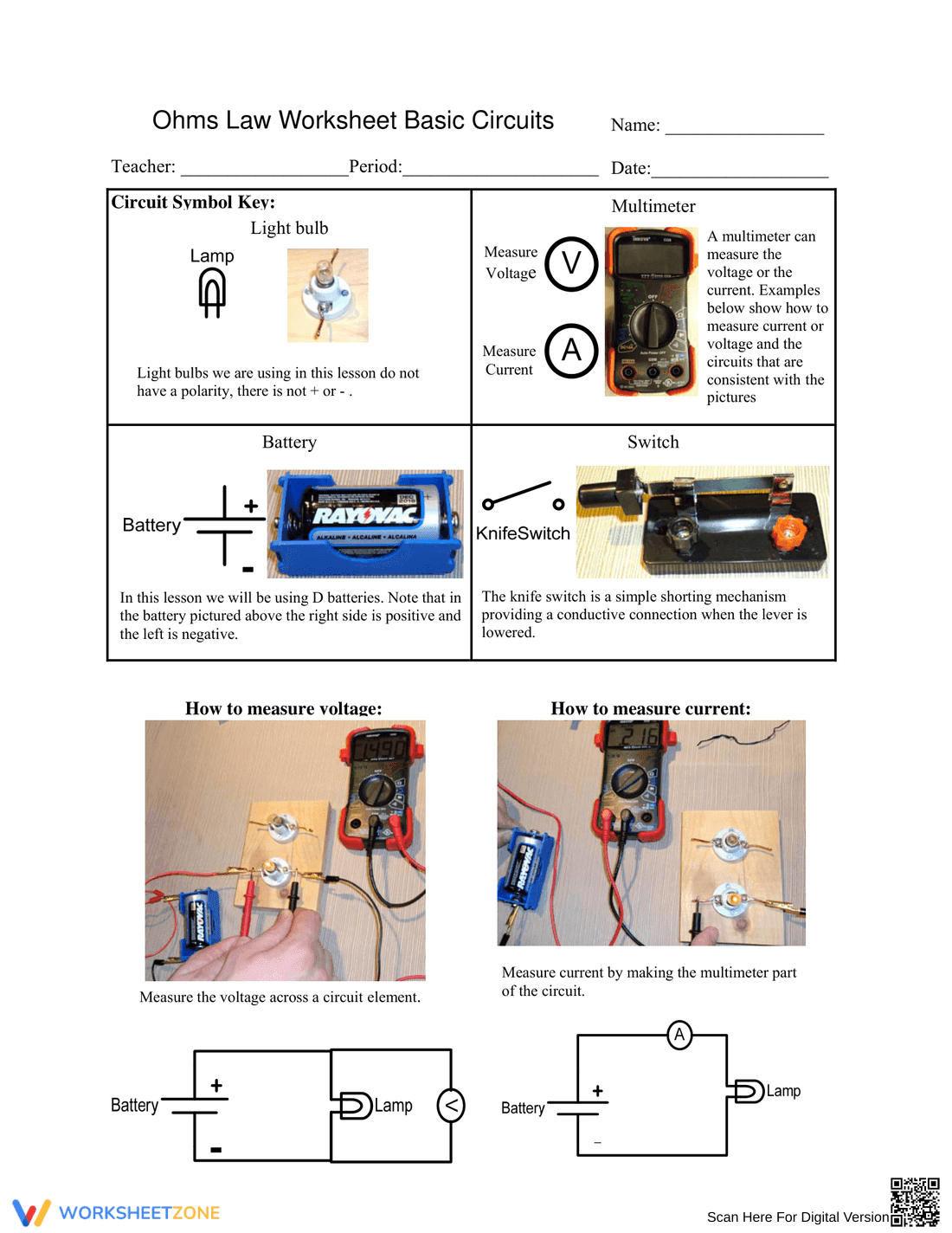

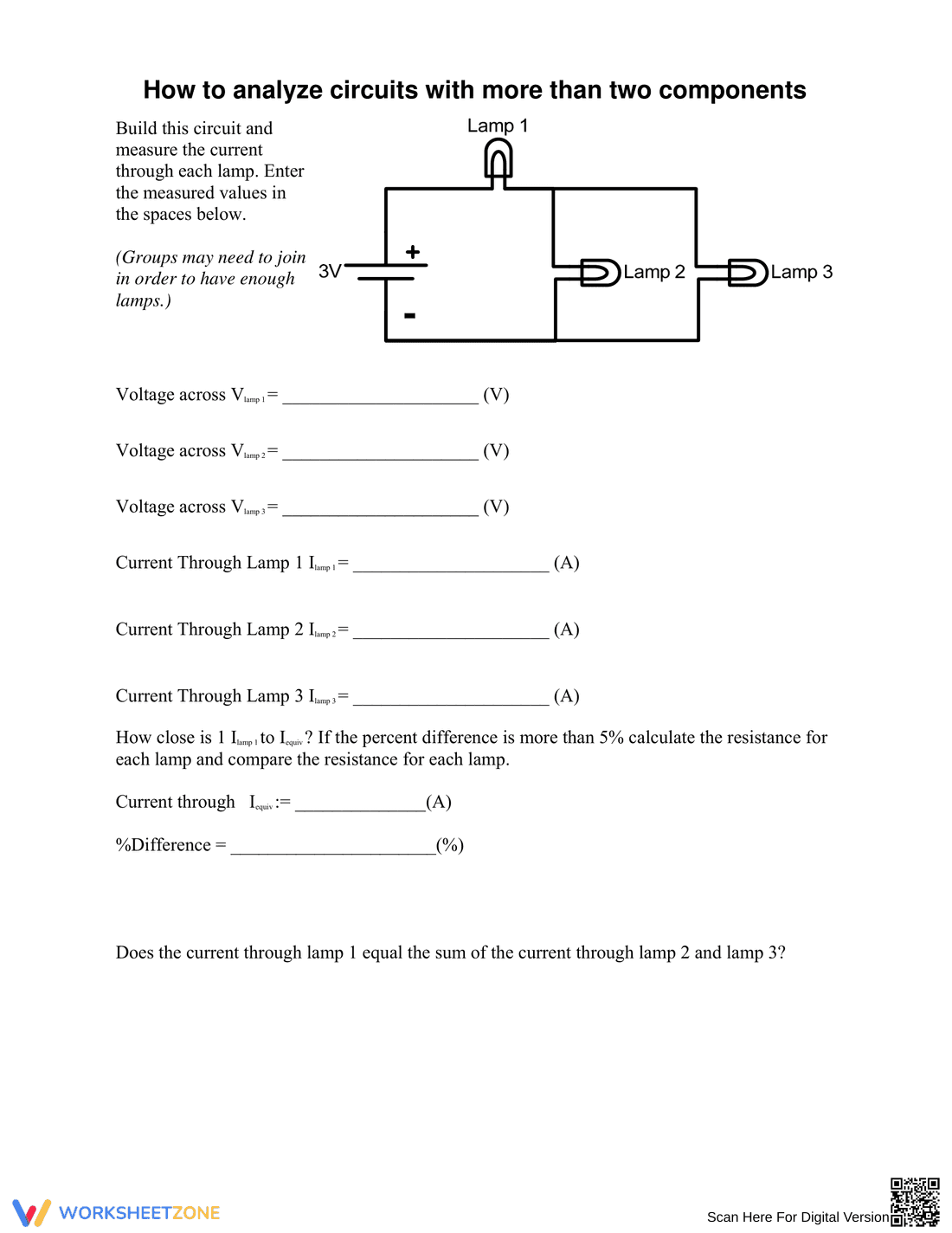

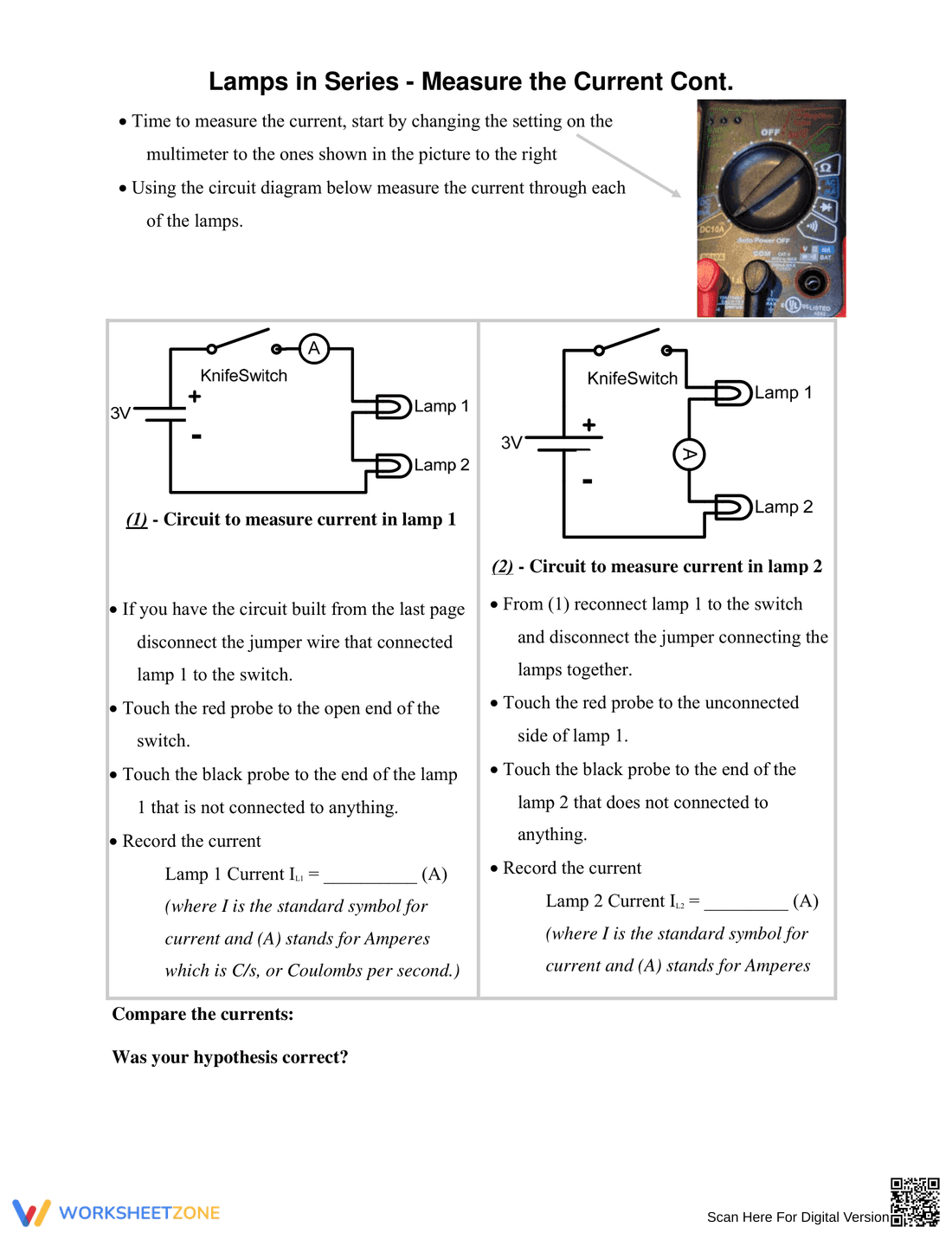

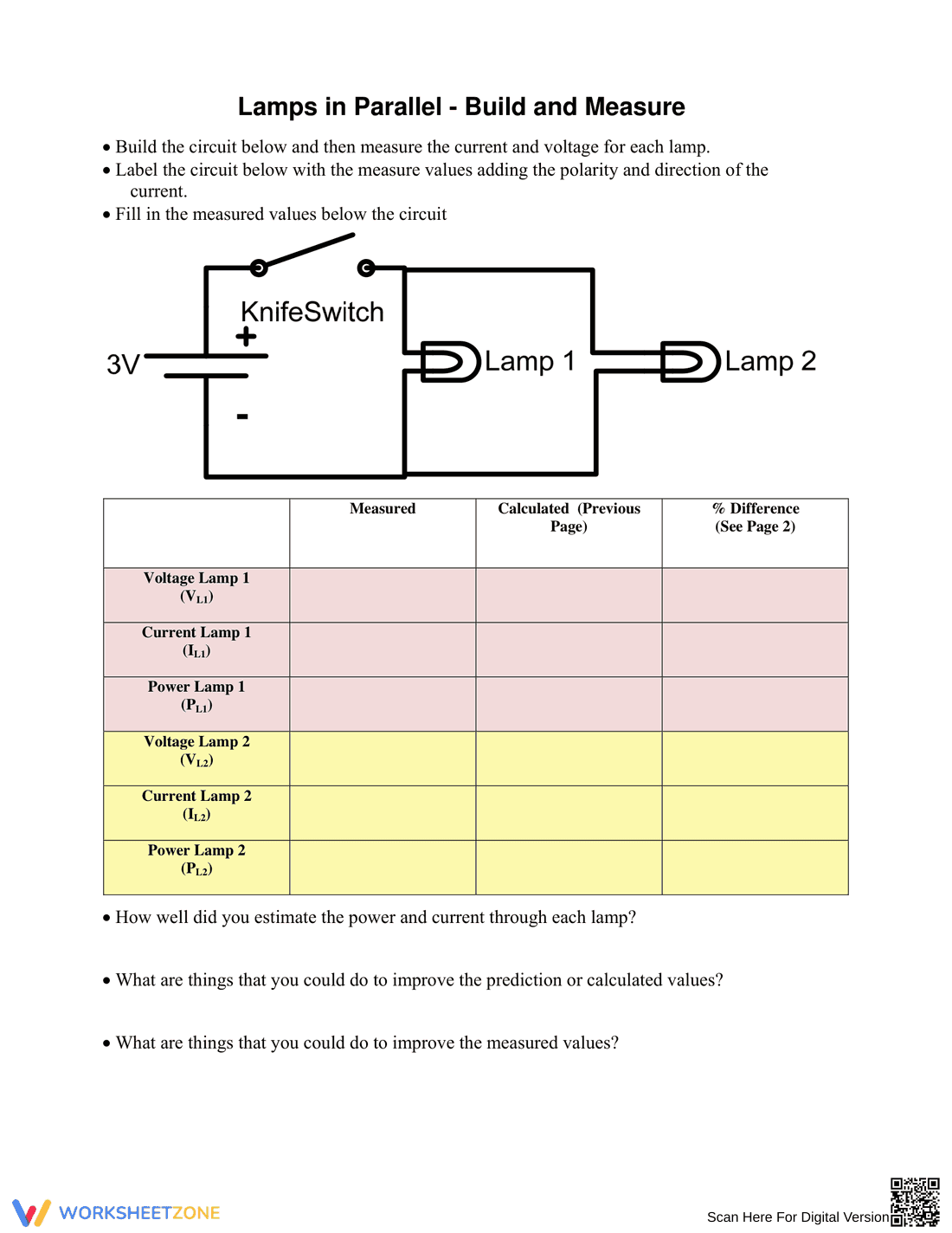

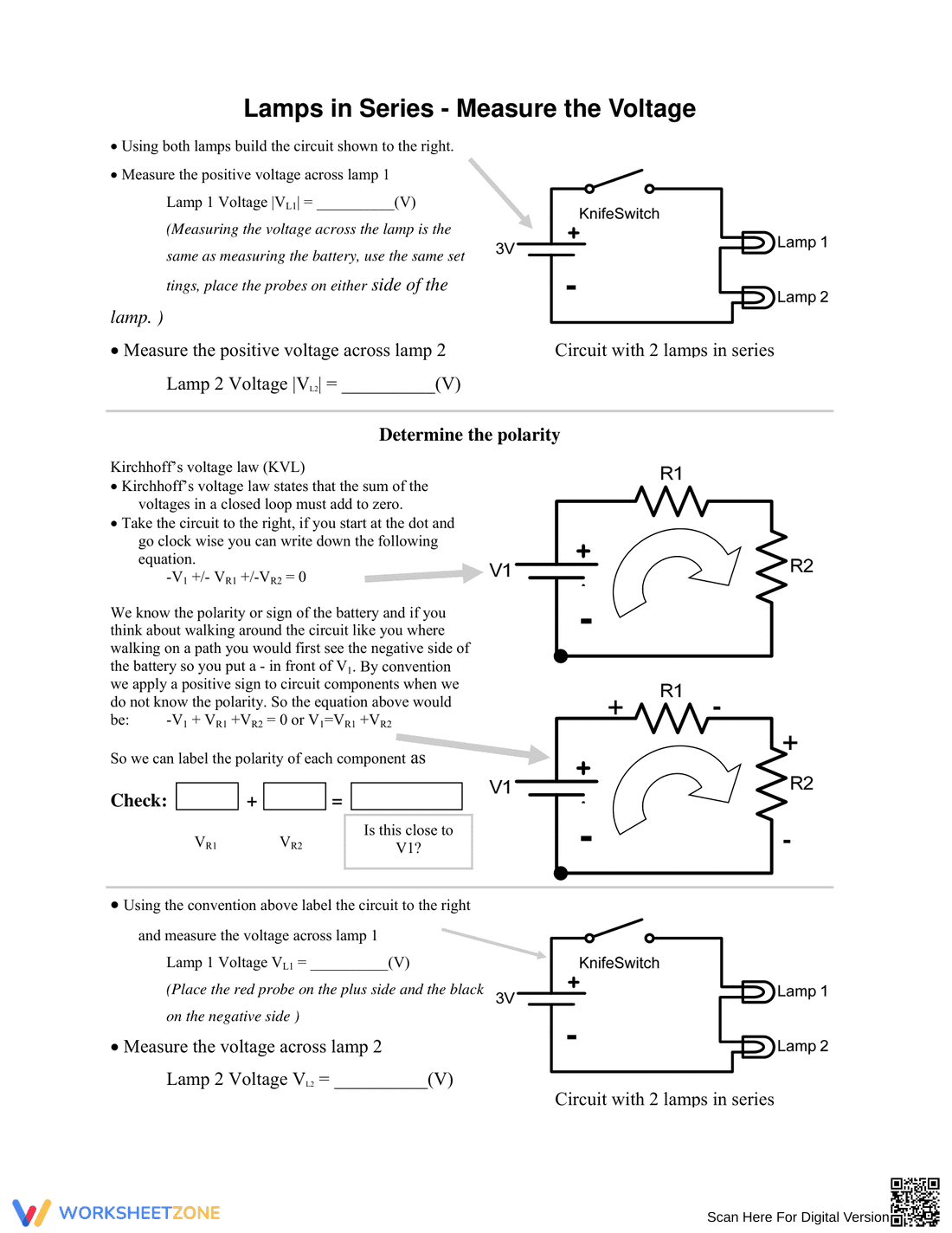

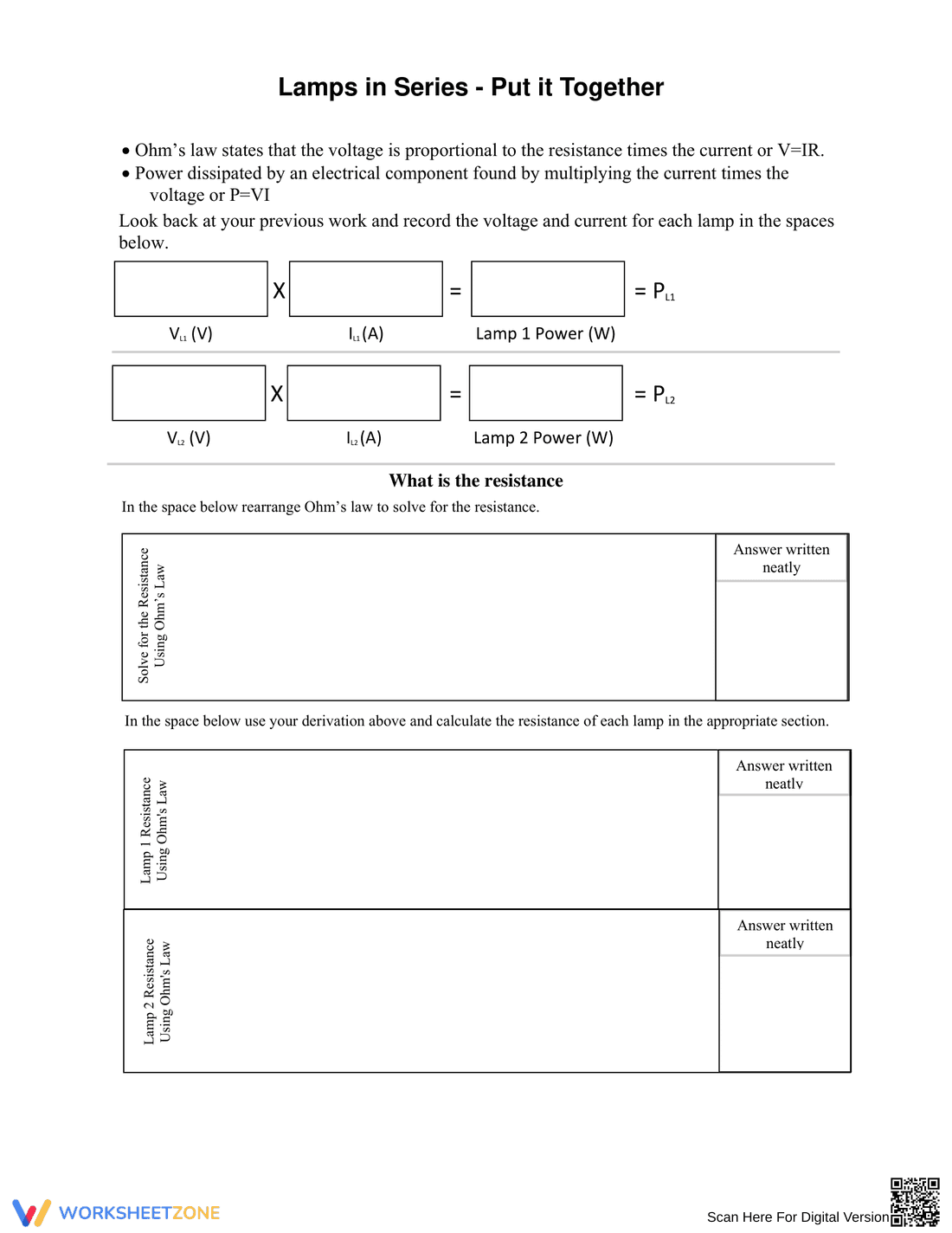

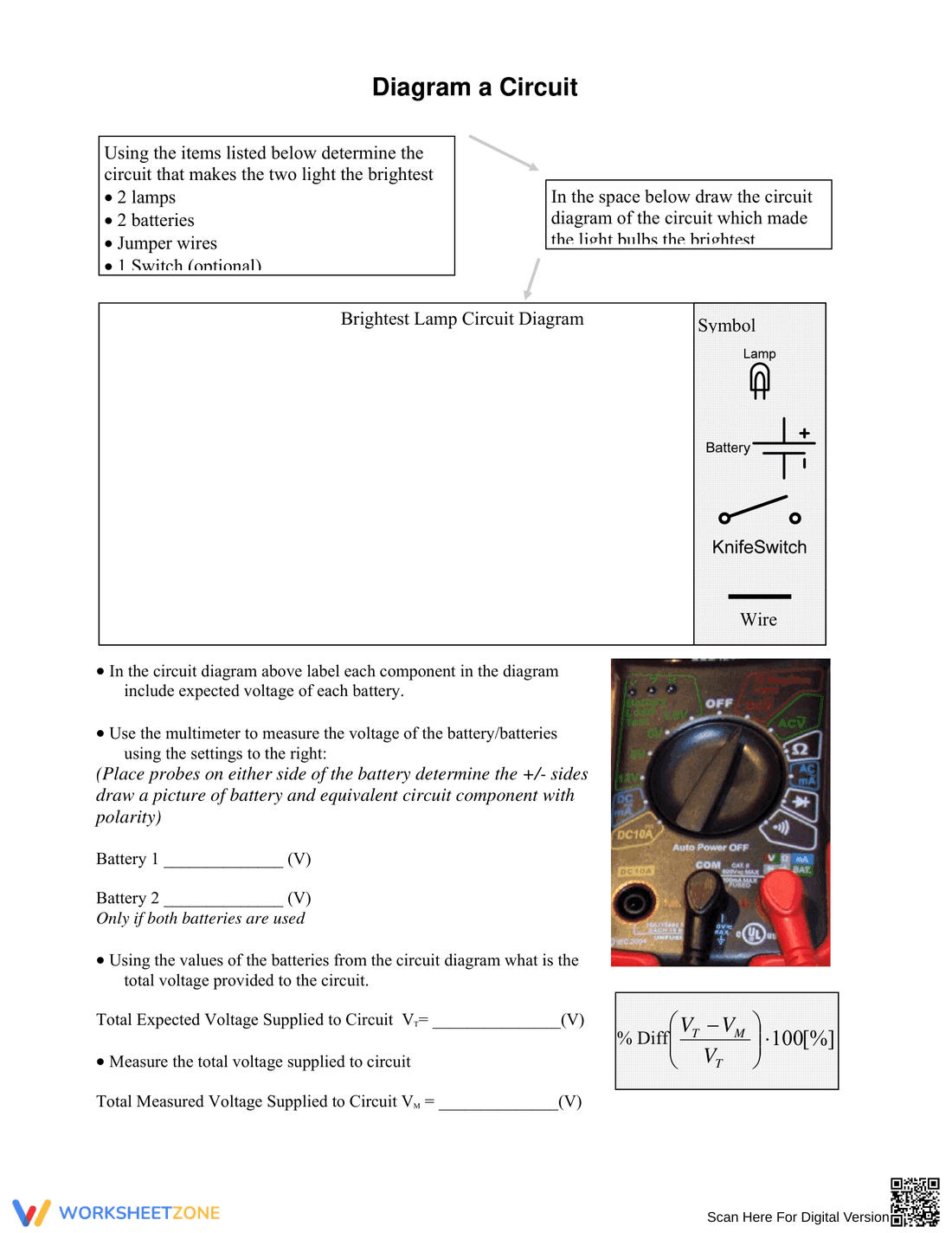

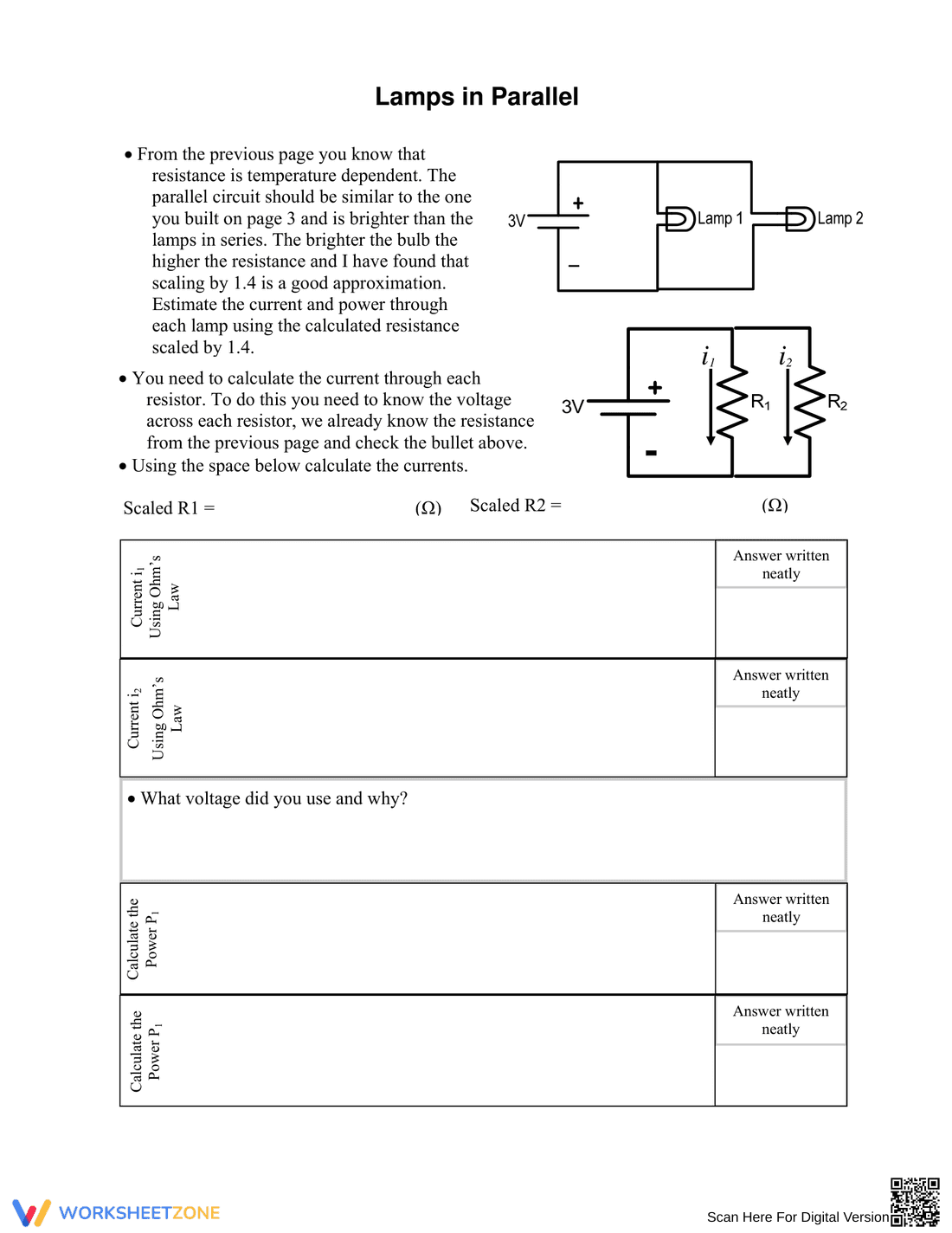

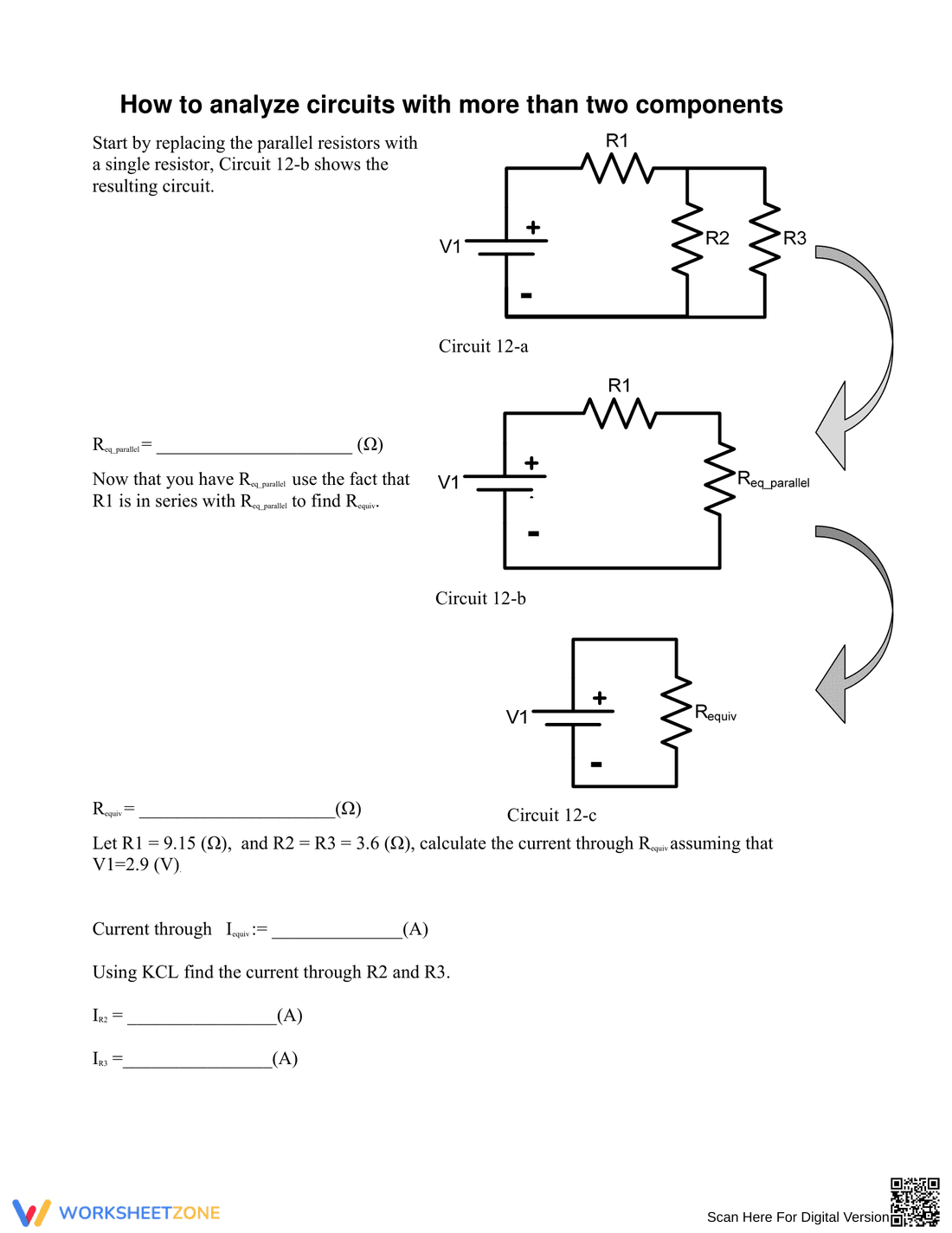

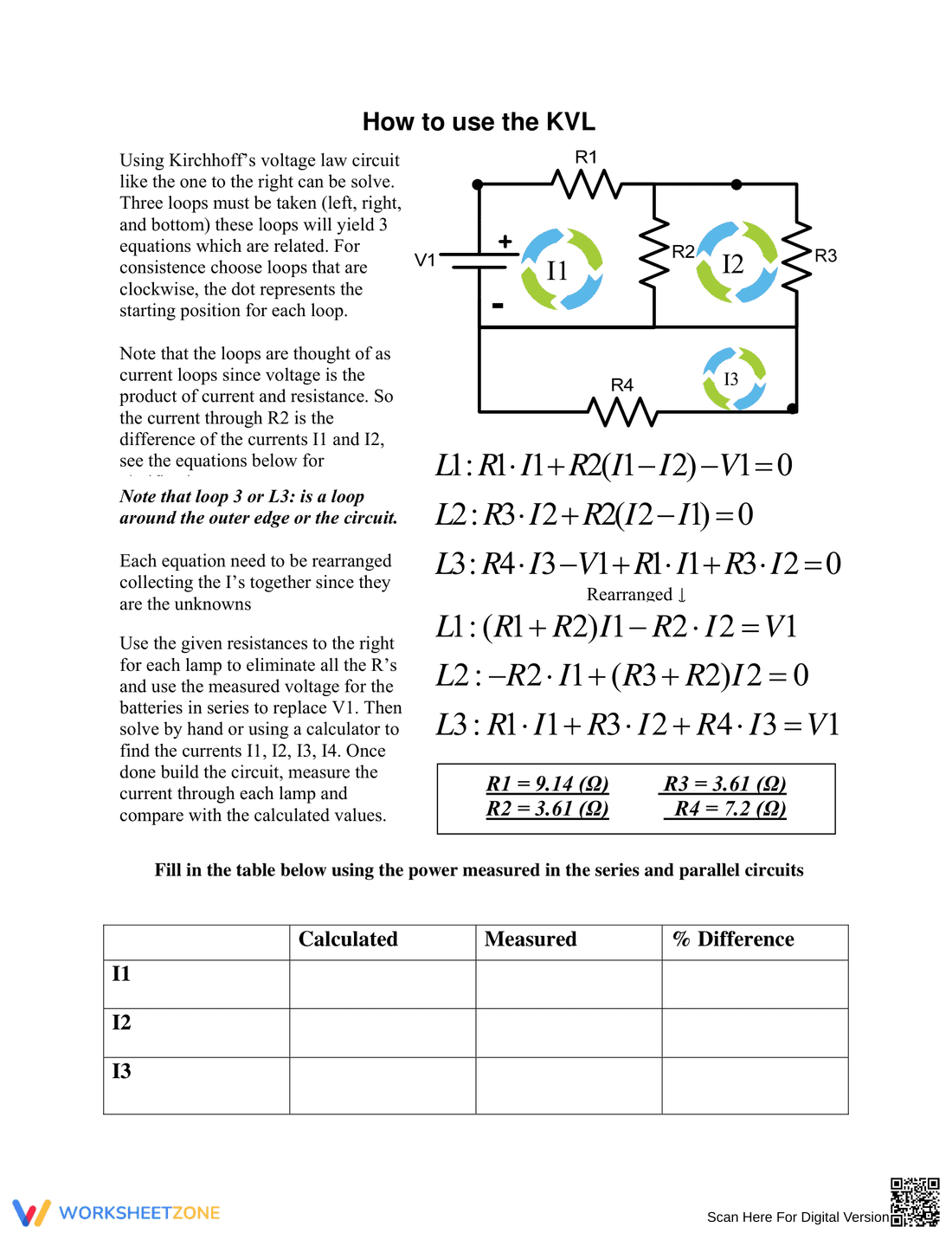

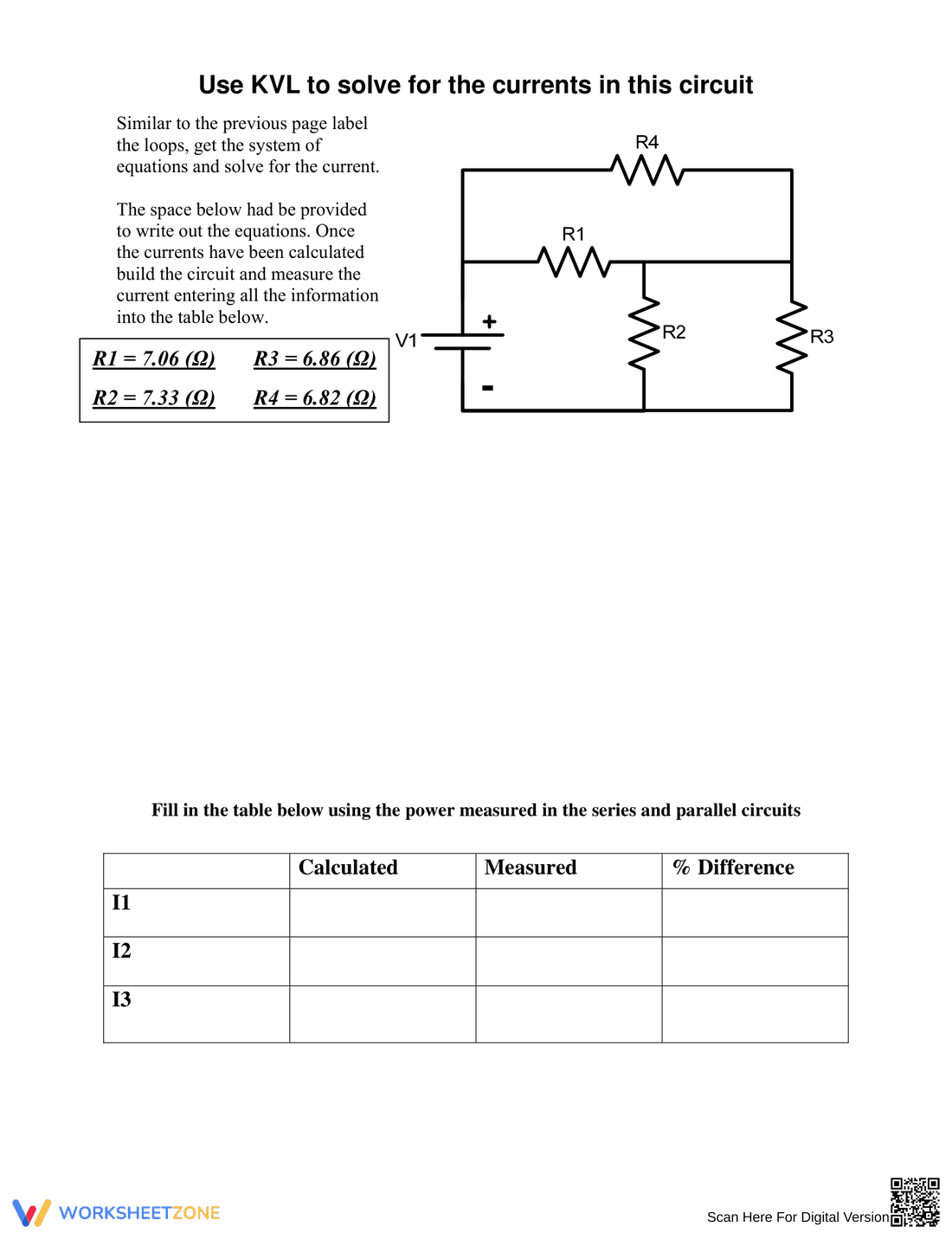

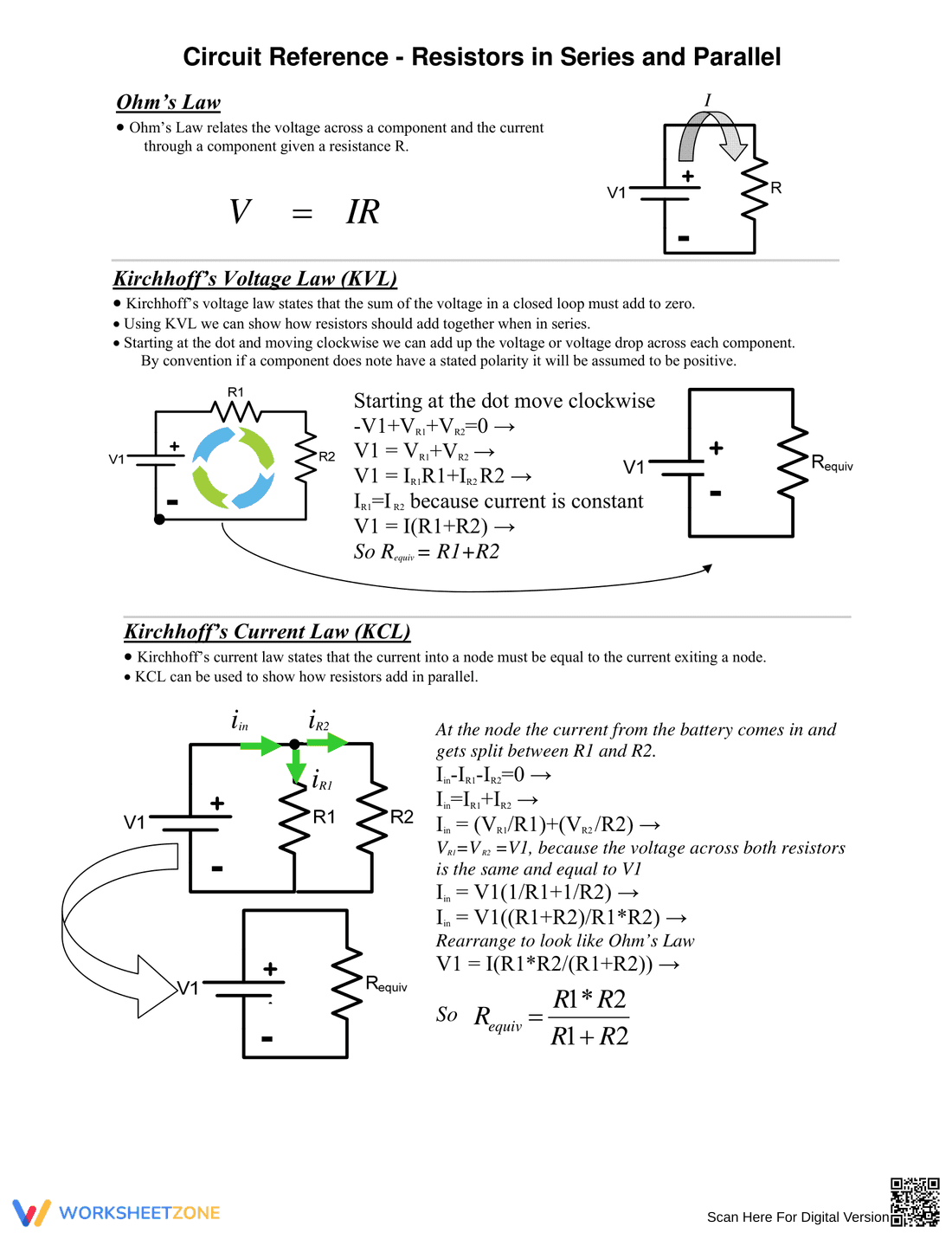

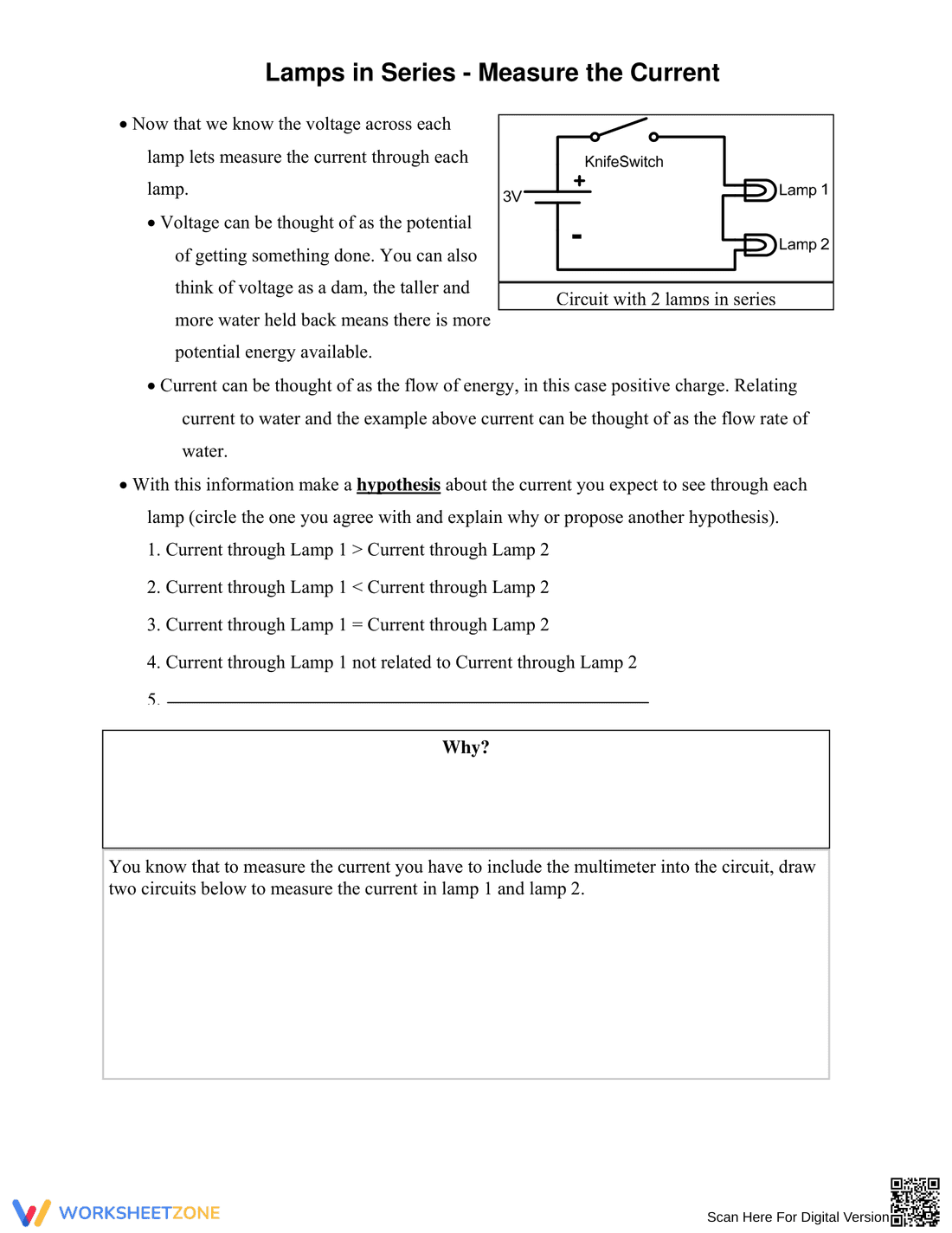

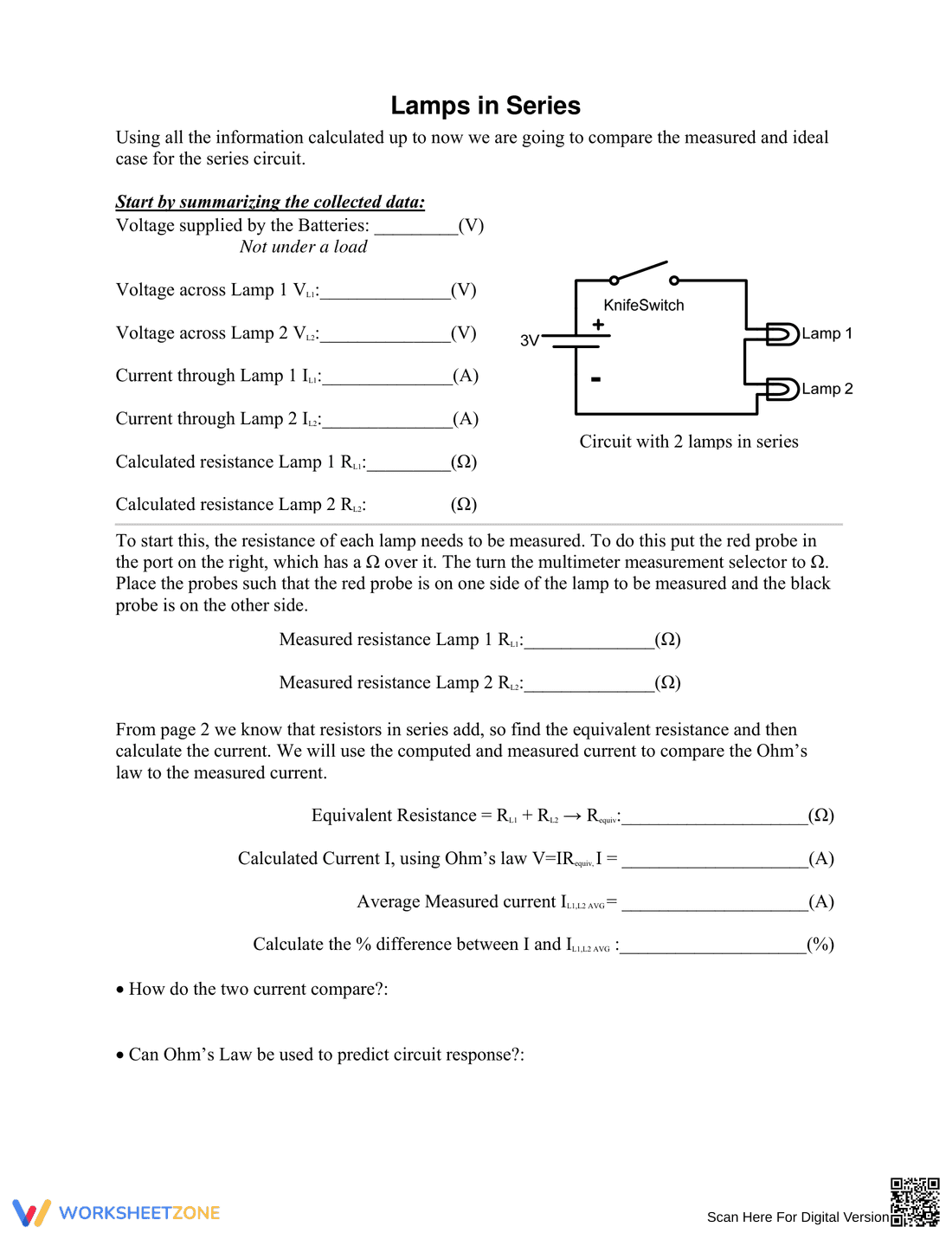

This is an Ohm's Law worksheet focusing on basic circuits. It includes a circuit symbol key with images and descriptions for components like a lamp, light bulb, battery, and knife switch. It also shows how to measure voltage and current using a multimeter, with corresponding circuit diagrams.
Grade Level Suitability:
Suitable for grades 6-9. It provides a visual introduction to basic circuit components and how to measure voltage and current, making it accessible for middle school students learning introductory physics concepts.
Why Use It:
It helps students understand basic circuit components and their symbols, learn how to measure voltage and current in a simple circuit, and visualize the practical application of Ohm's Law. The worksheet uses real-world images to connect abstract concepts to tangible objects.
How to Use It:
Students can use this worksheet to learn the symbols and functions of basic circuit elements. They can study the images to understand how to connect a multimeter to measure voltage and current. The worksheet can be used as a guide for building and testing simple circuits.
Target Users:
This worksheet is intended for students learning about basic circuits and Ohm's Law, as well as teachers looking for a visual aid to introduce these concepts. It's also helpful for anyone wanting a basic understanding of how to measure voltage and current.
