Free Body Diagram Answers
0 Views
0 Downloads
Paste this activity's link or code into your existing LMS (Google Classroom, Canvas, Teams, Schoology, Moodle, etc.).
Students can open and work on the activity right away, with no student login required.
You'll still be able to track student progress and results from your teacher account.
Information
Description
What It Is:

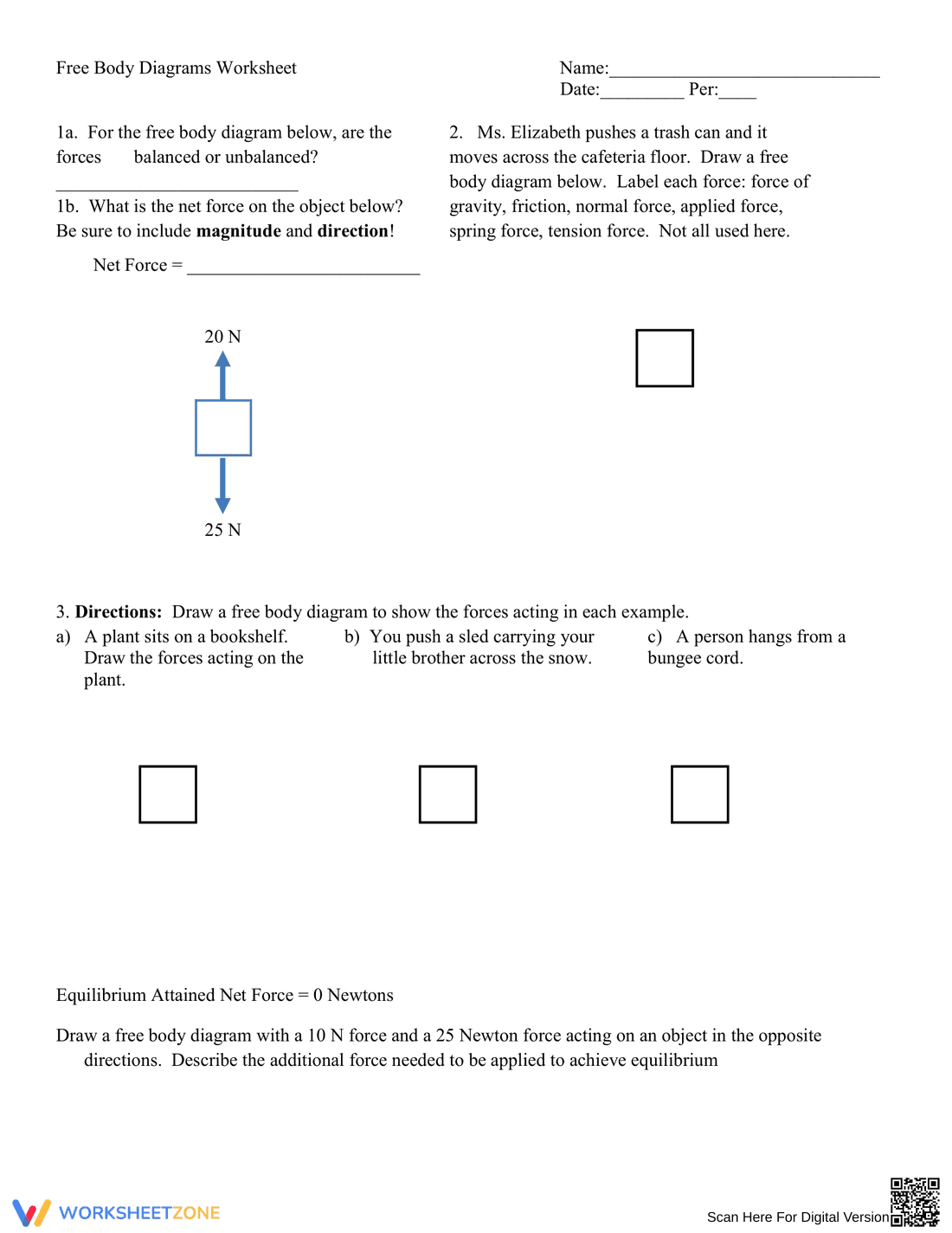

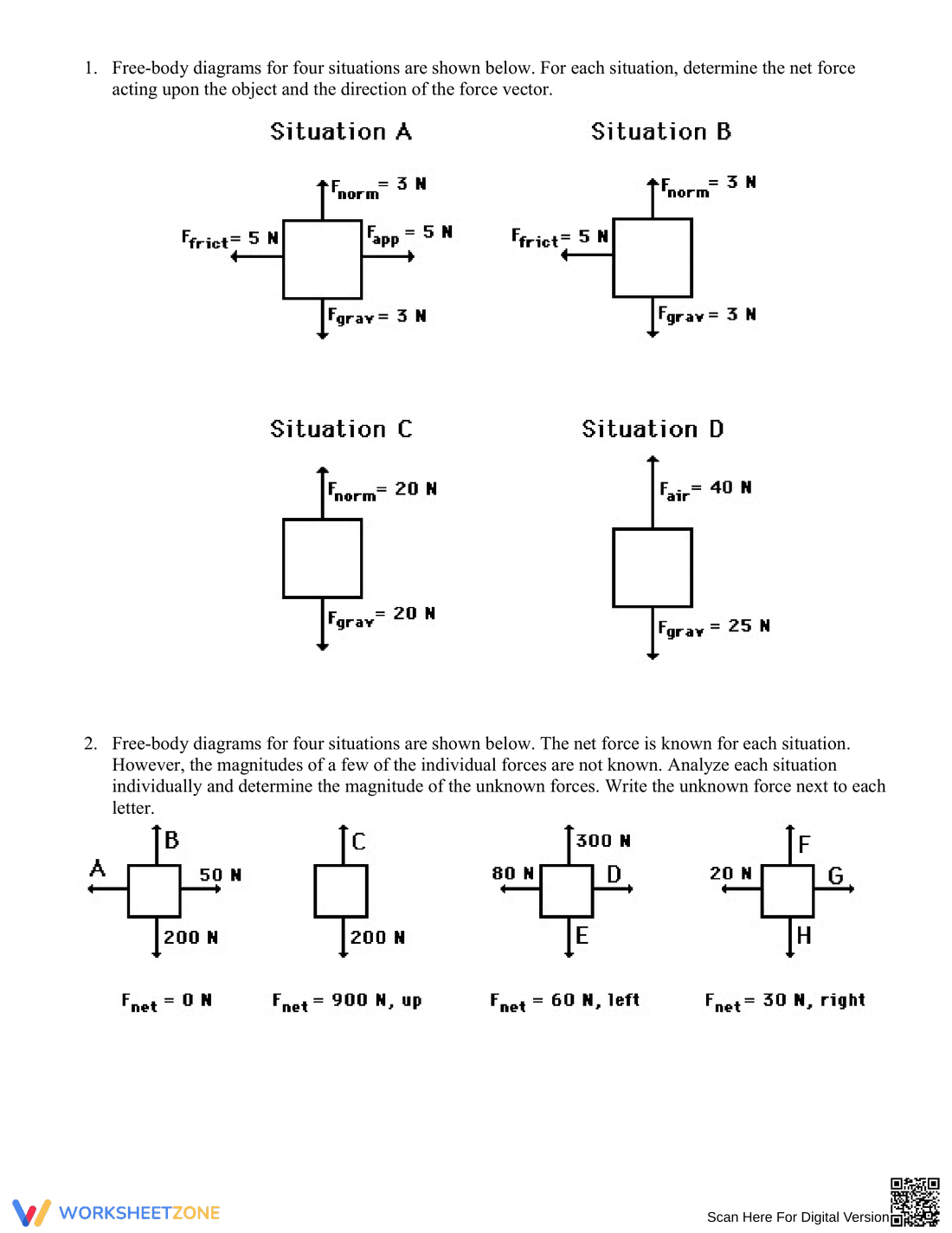

This is a physics worksheet focused on free body diagrams. It includes questions asking students to determine if forces are balanced or unbalanced based on a provided free body diagram with 20N and 25N forces. Students are also asked to calculate the net force, including magnitude and direction. Further questions involve drawing free body diagrams for scenarios such as a person pushing a trash can, a plant on a bookshelf, a person pushing a sled, and a person hanging from a bungee cord. The final question asks students to draw a free body diagram with 10N and 25N forces and determine the force needed to achieve equilibrium.
Grade Level Suitability:
This worksheet is suitable for high school physics, specifically grades 9-12. The concepts of force, net force, free body diagrams, and equilibrium are typically covered in introductory physics courses at this level.
Why Use It:
This worksheet helps students develop a strong understanding of forces and their interactions. It reinforces the ability to visualize forces acting on objects, represent them in free body diagrams, calculate net force, and understand the concept of equilibrium. It also promotes critical thinking and problem-solving skills in a physics context.
How to Use It:
Students should first review the concepts of force, net force, and free body diagrams. Then, they should carefully read each question and draw the corresponding free body diagram, labeling each force with its magnitude and direction. For the numerical problems, students need to calculate the net force. Finally, they should analyze the diagrams and calculations to answer the questions related to balanced or unbalanced forces and equilibrium.
Target Users:
The target users are high school physics students learning about forces, free body diagrams, and net force. It is also beneficial for teachers who need practice problems for their students or as a review activity.
This is a physics worksheet focused on free body diagrams. It includes questions asking students to determine if forces are balanced or unbalanced based on a provided free body diagram with 20N and 25N forces. Students are also asked to calculate the net force, including magnitude and direction. Further questions involve drawing free body diagrams for scenarios such as a person pushing a trash can, a plant on a bookshelf, a person pushing a sled, and a person hanging from a bungee cord. The final question asks students to draw a free body diagram with 10N and 25N forces and determine the force needed to achieve equilibrium.
