Ready Current & Voltage Errors Worksheet | Grade 12 Physics

This Grade 12 Physics worksheet trains students to find and correct common mistakes in DC circuit reasoning. Across 8 synthetic student solutions, learners name each error, state the principle it violates in series, parallel, and series-parallel circuits, and write a corrected solution with units.

At a Glance

• Grade: 12 · Subject: Physics
• Standard: Diagnose flawed circuit solutions and calculate correct currents and voltages
• Skill Focus: Correcting current-splitting and voltage errors in series, parallel, and combination circuits
• Format: 5 pages · 8 problems · Answer key included · PDF
• Best For: Repairing circuit misconceptions after instruction
• Time: 35–45 minutes

What's Inside

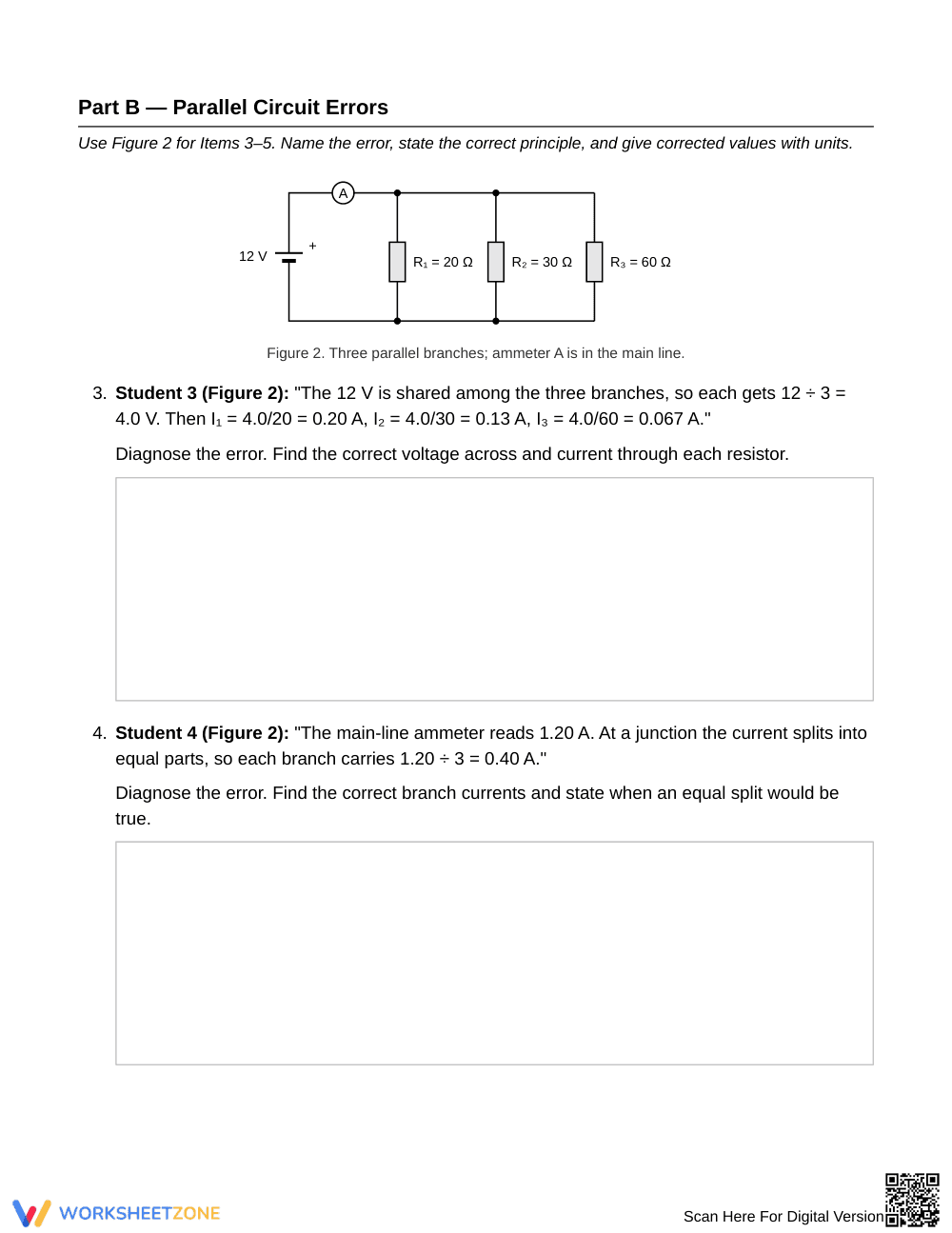

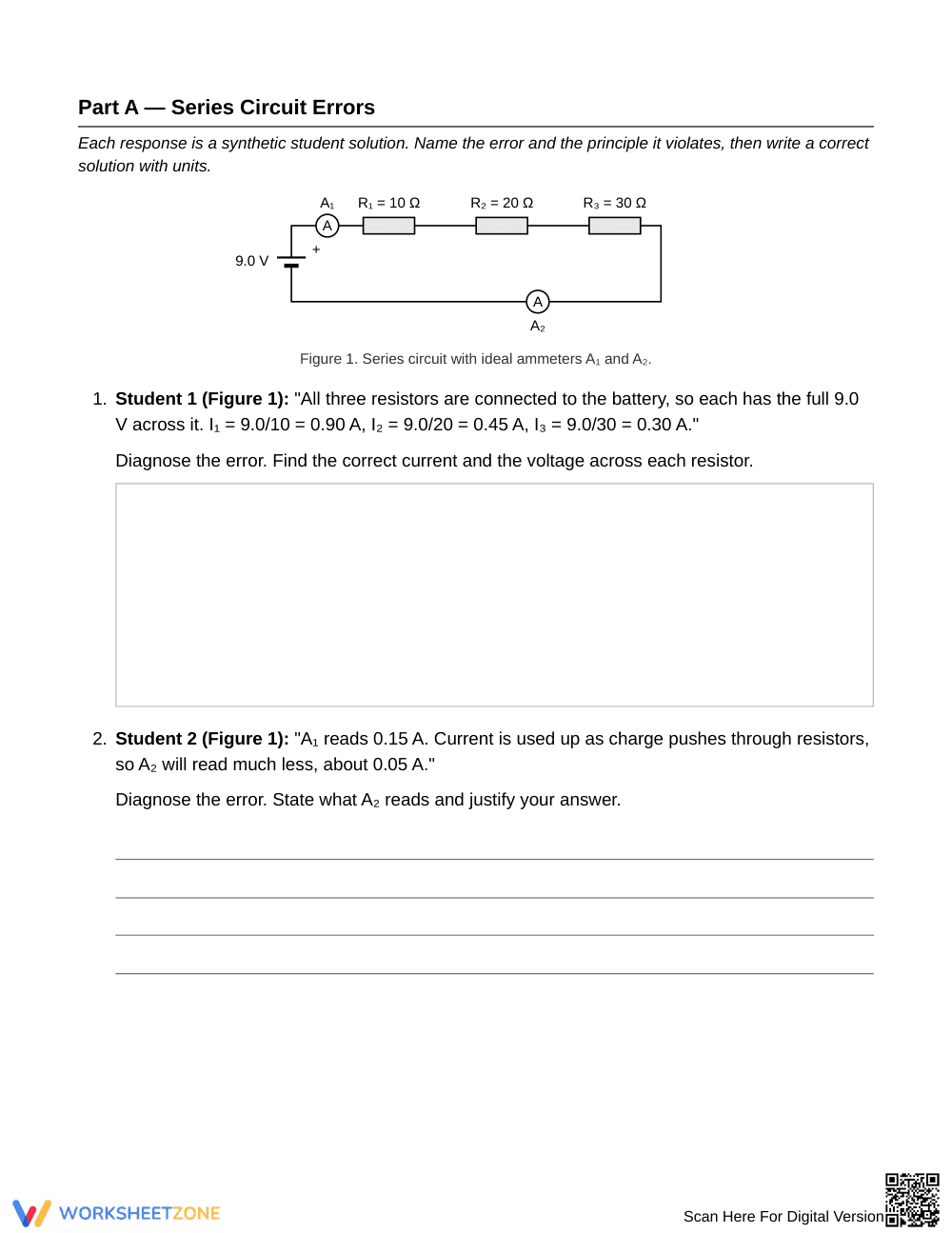

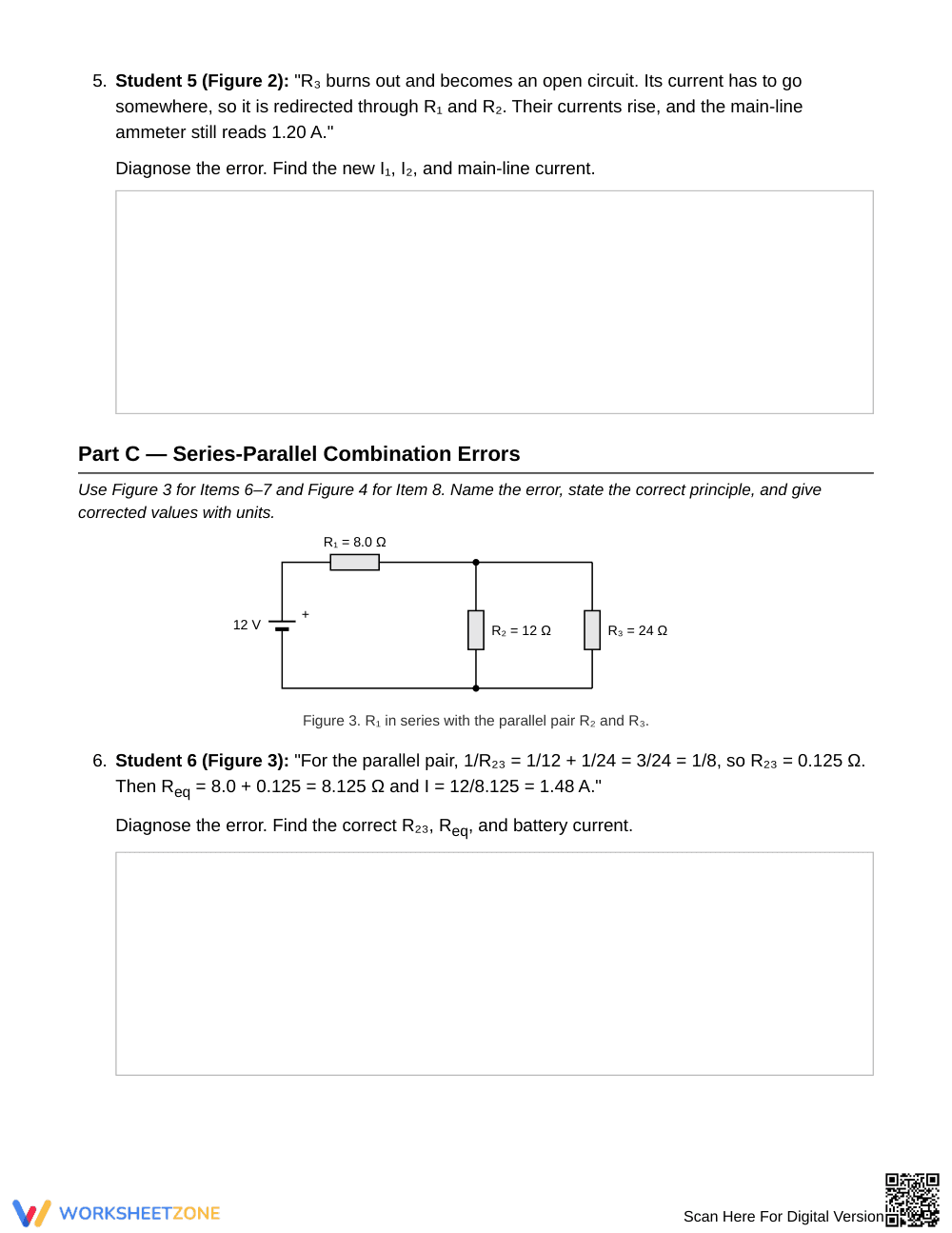

The 5-page PDF opens with an assumptions and rules box covering ideal components, series and parallel relationships, and rounding. A fully worked Model Repair shows a flawed parallel solution, a diagnosis, a corrected solution, and a check. Three parts follow: Part A has 2 series circuit errors, Part B has 3 parallel circuit errors, and Part C has 3 series-parallel errors. Circuit diagrams support every part. A 3-page answer key is included.

Skill Progression

• Guided practice: 1 worked Model Repair with the error, diagnosis, and correction fully shown.
• Supported practice: Items 1–4, each with one clear misconception and a prompt that says what to find.

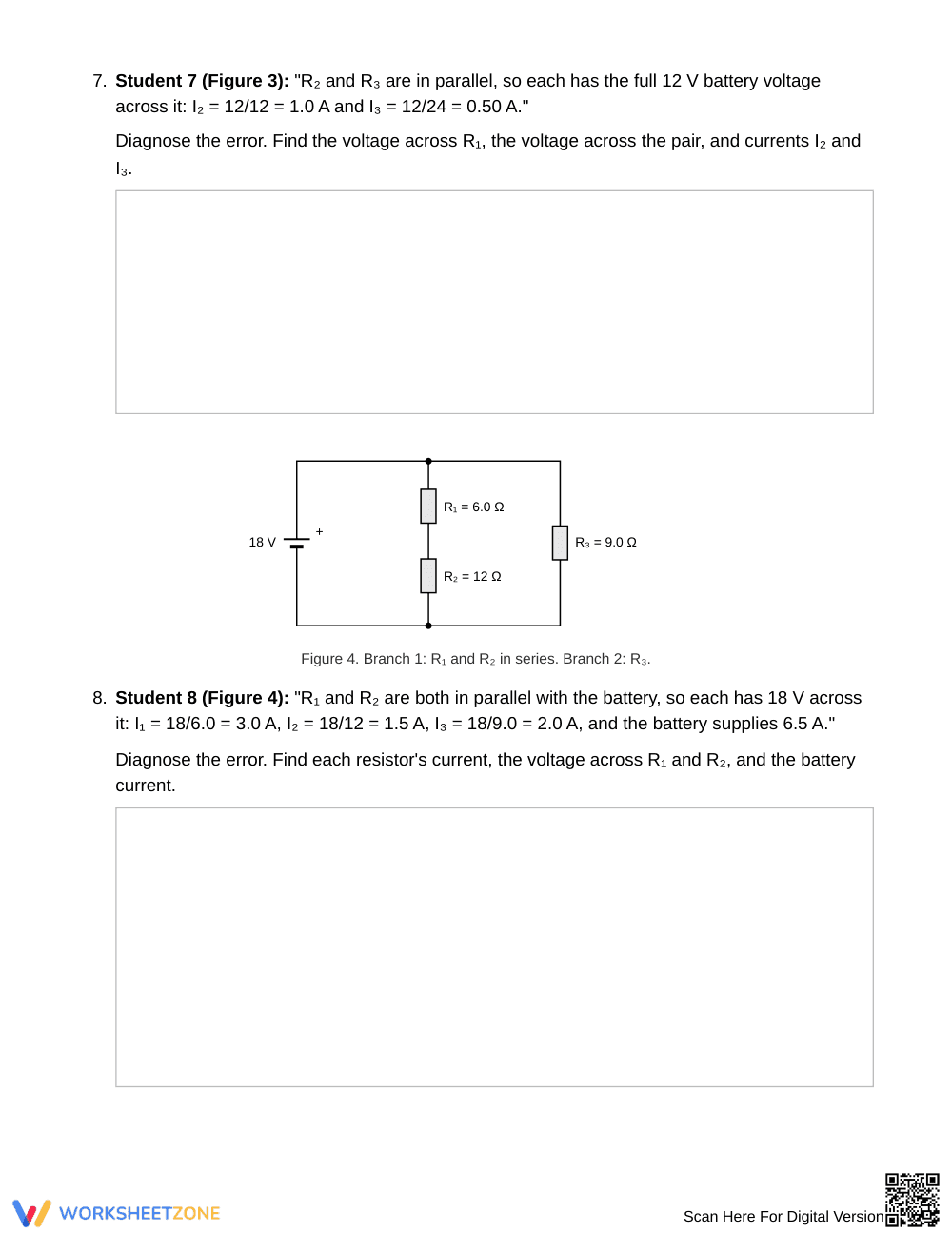

• Independent practice: Items 5–8, including an open-circuit failure and two series-parallel networks that need several steps.

The sequence follows a gradual-release model: I Do, We Do, You Do.

Standards Alignment

No standard code is attached to this worksheet. It targets core DC circuit content: Ohm's law, equivalent resistance, equal current in series, equal voltage across parallel branches, and branch currents that sum to the main-line current. Add your state or district standard code when you map it into lesson plans or curriculum documents.

How to Use It

• After direct instruction: Assign Parts A–C as in-class practice once students have seen series and parallel rules, then review the answer key together.
• Before a unit assessment: Use it as targeted review so students practice spotting misconceptions in other people's work.

While students work, watch whether they name the principle (for example, same voltage across parallel branches) before they calculate. Students who skip the naming step often repeat the error. Expect 35–45 minutes to finish.

Who It's For

This worksheet suits Grade 12 Physics students who can already apply V = IR and need to correct persistent circuit misconceptions. The rules box and worked example support students who need more structure, and the open-circuit and series-parallel items challenge stronger students. Pair it with an equivalent-resistance anchor chart or a direct-instruction lesson on series and parallel circuits.

Correcting Current-Splitting and Voltage Errors in DC Circuits is a Grade 12 Physics worksheet in which students diagnose 8 flawed solutions and write correct ones. It targets misconceptions such as treating current as used up, splitting voltage equally across parallel branches, and applying series formulas to parallel circuits. Each item asks students to name the error, state the governing principle, and calculate corrected currents and voltages with units. A worked model, a rules box, and a 3-page answer key support the practice. The structure follows the gradual release of responsibility described by Fisher & Frey (2014), which moves students from teacher modeling to guided work to independent application. Error analysis asks students to explain why a method fails, which strengthens conceptual understanding beyond calculation alone.
